Lift Axle
Showing 49–72 of 114 results
-
Air Controls, Air Supply, Air Valves & Parts, Dump Valves, Dump Valves, Heavy Truck, Lift Axle, Push-Pull, Suspension
B2400-B43 AIRman 3-Port 2-Position Push-Pull Dump Valve
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Controls, Air Supply, Air Valves & Parts, Dump Valves, Dump Valves, Heavy Truck, Lift Axle, Push-Pull, SuspensionB2400-B43 AIRman 3-Port 2-Position Push-Pull Dump Valve
Threaded aluminum mounting boss for 3/4″ diameter through hole mounting, nut included.
Details:
- (5) 1/4″–18 FPT ports
- 1/8-27 NPTF optional gauge port.
- (2) 9/32″ dia. body mounting holes
- 3/4” Mounting Boss
- Replaces Watson & Chalin 11861-03, Dragon 243-4007, RG Group TD-4200, Automann 170.1186103
SKU: AP-B2400-B43 -
Air Supply, Gauges, Gauges, Heavy Truck, Suspension
K1100-353 AIRman Silicone Filled Guage 0-160 PSI
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Supply, Gauges, Gauges, Heavy Truck, SuspensionK1100-353 AIRman Silicone Filled Guage 0-160 PSI
This silicone filled guage valve is used to on trucks, trailers, and other applications. This is a very high quality guage and should last for many years.
Specs:
- Ports:
- Replacement gauge for the B2400-B03 and B2400-B04
- (Does not come with mounting bracket and is as pictured)
- 1/8″ NPTM Inlet
- 0-160 Air Pressure Range
- Can fit a 2” Mounting Hole
- Silicone Filled to prevent vibration damage
- Temp range -40F to 160F
- Stainless Steel Case
- Acrylic Lens
- Made in the USA!
Cross-Reference:
- 021-55419
- 7000-013
SKU: AP-K1100-353 - Ports:
-
Bushing Kits, Heavy Truck, Lift Axle, Repair Parts
R-002237 Hendrickson Paralift Bushing Assy
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Bushing Kits, Heavy Truck, Lift Axle, Repair PartsR-002237 Hendrickson Paralift Bushing Assy
R-002237 Hendrickson Paralift Bushing Assy
Replace your worn Hendrickson trailing beam bushingss. Price is for each bushing kit.
- Used in R-002006-2 and R-002006-2 Beams
- Kit includes one bushing, delrin sleeve, bolt & locknut, and 2 washers.
- This kit has the same bushing kit used in Hendrickson total rebush kit R-009560.
- Eight of this number R-002237 equals one of a R-009560.
Kit Specs:
- (1) Bushing; 1 1/32″ID x 3 3/8″OD x 5 1/4″Lg
- (1) Lock Nut ST 7/8in GR 8
- (2) USS Iron Flat Washer 7/8in
- (1) Cap Screw 7/8in X7-1/2in GR8
- (1) Delrin Sleeve Hendrickson 1” inside x .875” inside x 5” long.
- (2) Hendrickson Paralift Wear Washer: 4.25” Outside x 2.25” Inside x .190 Thick
SKU: DP-334-1588 -
Air Tanks, Heavy Truck, Lift Axle, Miscellaneous, Repair Parts
R-004687 Hendrickson Air Tank Bracket Kit
Sale!
*FREE UPS Ground
on orders of $99 or more!Air Tanks, Heavy Truck, Lift Axle, Miscellaneous, Repair PartsR-004687 Hendrickson Air Tank Bracket Kit
Replace your broken air tank brackets with this OE Hendrickson kit.
Components:
- (4) Straps.
- (2) 3/8 Clamp Bolts with Nuts.
Item commonly used with:
- Hendrickson R-004686 Air Tank which is 9.5in in diameter and 22.68in in length.
- Also included in R-004688 Hendrickson air tank kit.
SKU: HL-R-004687 -
Beams, Heavy Truck, Lift Axle, Repair Parts
R-008940 Hendrickson Composilite SC 13k Beam Assembly
Sale!
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Beams, Heavy Truck, Lift Axle, Repair PartsR-008940 Hendrickson Composilite SC 13k Beam Assembly
R-008940 Hendrickson Composilite SC 13k Beam Assembly
Replace your worn or broken Hendrickson trailing beams. Price is for each beam including bushings.
- This OE beam fits both sides & upper/lower.
- Bushing width is 3 inches.
- Beam length center of bushing to center of bushing is 16.813 inches.
- Bushing fits a 3/4in bolt.
- Does not include bolts, nuts or washers.
SKU: HL-R-008940 -
Air Controls, Air Valves & Parts, Heavy Truck, Lift Axle
R-017521-04 Hendrickson Regulator 1/4 NPT Ports
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Controls, Air Valves & Parts, Heavy Truck, Lift AxleR-017521-04 Hendrickson Regulator 1/4 NPT Ports
This R-017521-04 Hendrickson Regulator with 1/4 NPT Ports is used in applications using the Hendickson LC Series control panels.
1/4” NPT Ports, 12vdc, 3-Way
REGULATOR NUT #R-017521-20 IS NOT INCLUDED.
Applications;
- LC-NSI
- LC-SSI
SKU: HL-R-017521-04 -
Air Controls, Air Switch, Air Valves & Parts, Heavy Truck, Lift Axle
R-017521-06 Hendrickson Air Toggle Switch
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Controls, Air Switch, Air Valves & Parts, Heavy Truck, Lift AxleR-017521-06 Hendrickson Air Toggle Switch
This Pneumatic Toggle Switch is used in applications using the Hendickson LC Series control panels.
1/4” Push to connect fittings on each side for DOT nylon air hose.
Applications;
- LC-NSI
- LC-SSI
SKU: HL-R-017521-06 -
Air Controls, Air Valves & Parts, Gauges, Heavy Truck, Lift Axle
R-017521-08 Hendrickson 2” Liquid Filled Air Guage
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Controls, Air Valves & Parts, Gauges, Heavy Truck, Lift AxleR-017521-08 Hendrickson 2” Liquid Filled Air Guage
This R-017521-08 Hendrickson 2” Liquid Filled Air Guage is used in applications using the Hendickson LC Series control panels.
Includes 1/4” Push to connect fitting on for DOT nylon air hose.
Applications;
- LC-NSI
- LC-SSI
- ASI
SKU: HL-R-017521-08 -
Air Controls, Air Valves & Parts, Heavy Truck, Lift Axle, Solenoid Valves
R-017521-12 Hendrickson Solenoid Valve 12vdc
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Controls, Air Valves & Parts, Heavy Truck, Lift Axle, Solenoid ValvesR-017521-12 Hendrickson Solenoid Valve 12vdc
This R-017521-12 Hendrickson Solenoid Valve 12vdc is used in applications using the Hendickson LC Series control panels.
1/4” NPT Ports, 12vdc, 3-Way
Applications;
- LC-NSI
- LC-SSI
- ASI
SKU: HL-R-017521-12 -
Air Controls, Air Supply, Air Valves & Parts, Heavy Truck, Lift Axle, Push-Pull
TD-6200 Alkon 3-Port 2-Position Valve w/ Detent
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Controls, Air Supply, Air Valves & Parts, Heavy Truck, Lift Axle, Push-PullTD-6200 Alkon 3-Port 2-Position Valve w/ Detent
TD-6200 has a threaded aluminum mounting boss for 7/8″ diameter through hole mounting, nut included. For 2-Way Tailgate Cylinders.
Details:
- (3) 3/8″–18 FPT ports
- Detented for positive engagement
- (2) 9/32″ dia. body mounting holes
- Includes “Pull to Raise-Lower” amd “Pull to Open-Close” handle labels
SKU: AP-TD-6200 -
Air Controls, Air Supply, Air Valves & Parts, Heavy Truck, Lift Axle, Push-Pull
TD-6300 Alkon 5-Port 2-Position Valve w/ Detent
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Controls, Air Supply, Air Valves & Parts, Heavy Truck, Lift Axle, Push-PullTD-6300 Alkon 5-Port 2-Position Valve w/ Detent
TD6300 has a threaded aluminum mounting boss for 3/4″ diameter through hole mounting, nut included. For 2-Way Tailgate Cylinders.
Details:
- (5) 3/8″–18 FPT ports with
- 1.13 inch spacing on 2 port side
- 1.20 inch spacing on 3 port side
- Detented for positive engagement
- (2) 9/32″ dia. body mounting holes
- Includes “Pull to Raise-Lower” amd “Pull to Open-Close” handle labels
- Replaces AIRman B2400-B40, Buyers Products AK12392MR, 170.V24204
SKU: AP-TD-6300 - (5) 3/8″–18 FPT ports with
-
Air Controls, Air Supply, Air Valves & Parts, Dump Valves, Dump Valves, Heavy Truck, Lift Axle, Push-Pull, Suspension
TD-6600 Alkon 3-Port 3-Position Det Push-Pull Valve
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Controls, Air Supply, Air Valves & Parts, Dump Valves, Dump Valves, Heavy Truck, Lift Axle, Push-Pull, SuspensionTD-6600 Alkon 3-Port 3-Position Det Push-Pull Valve
TD-6600 Alkon 3-Port 3-Position Det Push-Pull Valve
Details:
- 3-WAY, Push/Pull, 3 Position, Blocked Center Valve
- Detented 3 positions
- Body mount/Panel mount
- Panel mount 7/8″ diameter
- (3) 3/8″ FPT ports
SKU: AP-TD-6600 -
Air Controls, Air Supply, Air Valves & Parts, Control Valves, Dump Valves, Heavy Truck, Lift Axle, Pilot Valves
10376-02 Watson-Chalin 5-Port Pilot Valve
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Controls, Air Supply, Air Valves & Parts, Control Valves, Dump Valves, Heavy Truck, Lift Axle, Pilot Valves10376-02 Watson-Chalin 5-Port Pilot Valve
This valve is used in many applications like controlling air tailgate cylinders, suspension dump valves, and others.
- Item may have a part number of TD4320 (Alkon) which is interchangeable.
Specs:
- Spring Return-Air Pilot
- This valve has a new mounting hole configuration compared to the original Watson & Chalin 10376-02.
- Ports:
- Main Ports 1/4″ NPTF (x5)
- 1/4” NPTF Pilot Port on end
- Exhaust port opposite end (could be a small vent hole or threaded hole).
- Replaces Watson & Chalin 10376-02, Alkon TD4320, Apsco VX-4-AP
- Made in the USA!
SKU: WC-10376-02 -
Brake, Heavy Truck, Lift Axle

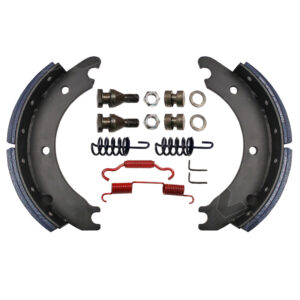

144.128480.5010 Automann Hendrickson/Watson 8-10K Brake Shoe Kit (R-006097)
*FREE UPS Ground
on orders of $99 or more!Brake, Heavy Truck, Lift Axle144.128480.5010 Automann Hendrickson/Watson 8-10K Brake Shoe Kit (R-006097)
Brand new brake shoe kit for #8000 (8K) and some #10,000 (10k) Hendrickson & Watson Chalin Lift Axles. This kit manufactured by Automann and replaces R-006097.
- Brand New, Not Remanufactured, NO CORE CHARGE!
- Boxed kit is for one (1) wheel.
- Includes 2 shoes and 1 hardware kit (springs, rollers & anchor pins)
- 325 x 110 MM (12.75in x 4in)
- Replaces A2 3222T2126, A23222T2126WAC, MERA23222T2126, TDAA23222T2126
- Same as stamped Web Number: 3222 Q 2123
Contents
- Two 143.128480.30 Shoes with 20k Lining.
- One 100.SRK68.10 Brake Hardware.
Please call for availability if showing backorder.
SKU: AU-144.128480.5010 -
Air Controls, Air Supply, Air Valves & Parts, Dump Valves, General Purpose, Heavy Truck, Lift Axle, Pilot Valves, Relay Valves
170.90054079 Neway Type 3-Way Pilot Valve
*FREE UPS Ground
on orders of $99 or more!Air Controls, Air Supply, Air Valves & Parts, Dump Valves, General Purpose, Heavy Truck, Lift Axle, Pilot Valves, Relay Valves170.90054079 Neway Type 3-Way Pilot Valve
170.90054079 Neway Type 3-Way Pilot Valve
This valve by Automann is comparable as a Neway 3-Way Valve numbers 90054079, 90554206, and 90054206.
SKU: AU-170.90054079
