Brakes
Showing all 11 results
-
Drums, Hubs, Light Trailer, Wheel End

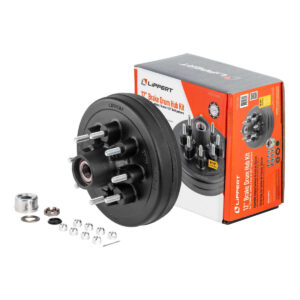

2024013261 Lippert 12″ Brake Hub Complete Kit w/Installed Bearings 7k
Drums, Hubs, Light Trailer, Wheel End2024013261 Lippert 12″ Brake Hub Complete Kit w/Installed Bearings 7k
2024013261 Lippert 12″ Brake Hub Complete Kit w/Installed Bearings 7k
Key Technical Specifications
- Brake Hub Assembly – Axle rating: 7,000 lbs.; Bolt pattern: 8 on 6.5″; Stud size: 9/16″
- Dust Cap with Plug – For 7,000-lb. axle capacities
- Cotter Pin – Overall length: 1-3/4″
- 6-slot Castle Spindle Nut – 6-slot castle nut; 1″-14 threads; 1-1/2″ hex; 9/16″ tall
- Round spindle washer – Inside diameter: 1.06″; Outside diameter: 2″
- Trailer Lug Nuts – Fit 9/16″-18 lug studs; 60-degree cone design
Same as:
- Lippert Drum Number 814213
- Lippert 814204 (Without lubed dust cap, cotter pin, castle nut, washer, lug nuts)
- Lippert Bulk 134543
- This hub also replaces the Dexter K08-219-2G (or 8-219-18UC3), or bare hub 008-219-13.
SKU: LP-2024013261 -
Drums, Hubs, Light Trailer, Wheel End

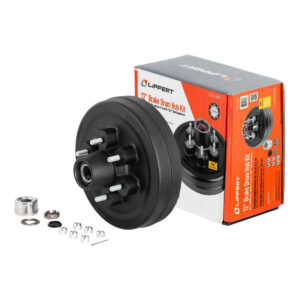

2024013262 Lippert 12″ Brake Hub Complete Kit w/Installed Bearings 6k
Drums, Hubs, Light Trailer, Wheel End2024013262 Lippert 12″ Brake Hub Complete Kit w/Installed Bearings 6k
2024013262 Lippert 12″ Brake Hub Complete Kit w/Installed Bearings 6k
Key Technical Specifications
- Brake Hub Assembly – Axle rating: 5,200 to 6,000 lbs.; Bolt pattern: 6 on 5.5″; Stud size: 1/2″
- Dust Cap with Plug – For 5,200 to 6,000-lb. axle capacities
- Cotter Pin – Overall length: 1-3/4″
- 6-slot Castle Spindle Nut – 6-slot castle nut; 1″-14 threads; 1-1/2″ hex; 9/16″ tall
- Round spindle washer – Inside diameter: 1.06″; Outside diameter: 2″
- Trailer Lug Nuts – Fit 1/2″-20 lug studs; 60-degree cone design
Same as:
- Lippert Drum Number 814211
- Lippert 814202 (Without lubed dust cap, cotter pin, castle nut, washer, lug nuts)
- Lippert Bulk 122094
- This hub also replaces the Dexter Dexter K08-201-9C (or 8-201-9UC3), or bare hub 008-201-09
SKU: LP-2024013262 -
Drums, Hubs, Light Trailer, Wheel End

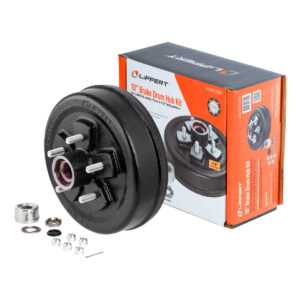

2024013264 Lippert 10″ Brake Hub Complete Kit w/Installed Bearings 3.5k
Drums, Hubs, Light Trailer, Wheel End2024013264 Lippert 10″ Brake Hub Complete Kit w/Installed Bearings 3.5k
2024013264 Lippert 10″ Brake Hub Complete Kit w/Installed Bearings 3.5k
Key Technical Specifications
- Brake Hub Assembly – Axle rating: 3,500 lbs.; Bolt pattern: 5 on 4.5″; Stud size: 1/2″
- Dust Cap with Plug – For 2,000 to 3,500-lb. axle capacities
- Cotter Pin – Overall length: 1-3/4″
- 6-slot Castle Spindle Nut – 6-slot castle nut; 1″-14 threads; 1-1/2″ hex; 9/16″ tall
- Round spindle washer – Inside diameter: 1.03″; Outside diameter: 1.68″
- Trailer Lug Nuts – Fit 1/2″-20 lug studs; 60-degree cone design
Same as:
- Lippert Drum Number 814210
- Lippert 814200 (Without lubed dust cap, cotter pin, castle nut, washer, lug nuts)
- Lippert Bulk 126003
- This hub also replaces the Dexter Dexter K08-201-05 (or 8-201-5UC3), or bare hub 008-201-05
SKU: LP-2024013264 -
Brakes, Electric, Light Trailer
296649 10×2.25 LH Lippert Forward Self-Adjusting RV Brakes 3.5k
*FREE UPS Ground
on orders of $99 or more!Brakes, Electric, Light Trailer296649 10×2.25 LH Lippert Forward Self-Adjusting RV Brakes 3.5k
296649 10×2.25 LH Lippert Forward Self-Adjusting RV Brakes
Key Specifications- Brake Rating: #3,500
- Size: 10 inches in diameter by 2-1/4 inches in width
- Position: Left / Driver side (road side)
- Axle Capacity: 3,500 lbs
- Mounting Pattern: Standard 4-bolt flange
- Brake Type: Electric drum brake
- Wheel Size Compatibility: Fits 13″, 14″, 14.5″, and 15″ wheels
- Operating Voltage: 12V DC (compatible with all standard or aftermarket trailer brake controllers)
- Finish: Corrosion-resistant E-coat on the backing plate to resist rust and grime
Same as:
- The direct Dexter equivalent to the Lippert 296649 electric brake assembly is the Dexter K23-468-00
SKU: LP-296649 -
Brakes, Electric, Light Trailer
296650 10×2.25 RH Lippert Forward Self-Adjusting RV Brakes 3.5k
*FREE UPS Ground
on orders of $99 or more!Brakes, Electric, Light Trailer296650 10×2.25 RH Lippert Forward Self-Adjusting RV Brakes 3.5k
296650 10×2.25 RH Lippert Forward Self-Adjusting RV Brakes
Key Specifications- Brake Rating: #3,500
- Size: 10 inches in diameter by 2-1/4 inches in width
- Position: Right / Passenger side (curb side)
- Axle Capacity: 3,500 lbs
- Mounting Pattern: Standard 4-bolt flange
- Brake Type: Electric drum brake
- Wheel Size Compatibility: Fits 13″, 14″, 14.5″, and 15″ wheels
- Operating Voltage: 12V DC (compatible with all standard or aftermarket trailer brake controllers)
- Finish: Corrosion-resistant E-coat on the backing plate to resist rust and grime
Same as:
- The direct Dexter equivalent to the Lippert 296650 electric brake assembly is the Dexter K23-469-00
SKU: LP-296650 -
Brakes, Electric, Light Trailer
296651 12×2 LH Lippert Forward Self-Adjusting RV Brakes 7k
*FREE UPS Ground
on orders of $99 or more!Brakes, Electric, Light Trailer296651 12×2 LH Lippert Forward Self-Adjusting RV Brakes 7k
296651 12×2 LH Lippert Forward Self-Adjusting RV Brakes
Key Technical Specifications- Brake Rating: #7,000
- Brake Size: 12 inches (drum diameter) x 2 inches (shoe width).
- Orientation: Left-hand side (driver/road side) only.
- Flange Pattern: 5-bolt mounting flange.
- Adjustment Type: Auto-adjust system.
- Operating Voltage: 12V DC (compatible with all standard or aftermarket trailer brake controllers).
- Finish: Corrosion-resistant E-coat on the backing plate to resist rust and grime.
Same as:
- The direct Dexter equivalent to the Lippert 296651 electric brake assembly is the Dexter K23-464-00
SKU: LP-296651 -
Brakes, Electric, Light Trailer
296652 12×2 RH Lippert Forward Self-Adjusting RV Brakes 7k
*FREE UPS Ground
on orders of $99 or more!Brakes, Electric, Light Trailer296652 12×2 RH Lippert Forward Self-Adjusting RV Brakes 7k
296652 12×2 RH Lippert Forward Self-Adjusting RV Brakes
Key Technical Specifications- Brake Rating: #7,000
- Brake Size: 12 inches (drum diameter) x 2 inches (shoe width).
- Orientation: Right-hand side (passenger/curb side) only.
- Flange Pattern: 5-bolt mounting flange.
- Adjustment Type: Auto-adjust system.
- Operating Voltage: 12V DC (compatible with all standard or aftermarket trailer brake controllers).
- Finish: Corrosion-resistant E-coat on the backing plate to resist rust and grime.
Same as:
- The direct Dexter equivalent to the Lippert 296652 electric brake assembly is the Dexter K23-465-00
SKU: LP-296652 -
Brakes, Electric, Light Trailer
298275 12×2 LH Lippert Manual-Adjusting RV Brakes 7k
*FREE UPS Ground
on orders of $99 or more!Brakes, Electric, Light Trailer298275 12×2 LH Lippert Manual-Adjusting RV Brakes 7k
298275 12×2 LH Lippert Manual-Adjusting RV Brakes
Key Technical Specifications- Brake Rating: #7,000
- Brake Size: 12 inches (drum diameter) x 2 inches (shoe width).
- Orientation: Left-hand side (driver/roadside) only.
- Flange Pattern: 5-bolt mounting flange.
- Adjustment Type: Manual-adjust system.
- Operating Voltage: 12V DC (compatible with all standard or aftermarket trailer brake controllers).
- Finish: Corrosion-resistant E-coat on the backing plate to resist rust and grime.
Same as:
- The direct Dexter equivalent to the Lippert 298275 electric brake assembly is the Dexter K23-180-00
SKU: LP-298275 -
Brakes, Electric, Light Trailer
298276 12×2 RH Lippert Manual-Adjusting RV Brakes 7k
*FREE UPS Ground
on orders of $99 or more!Brakes, Electric, Light Trailer298276 12×2 RH Lippert Manual-Adjusting RV Brakes 7k
298276 12×2 RH Lippert Manual-Adjusting RV Brakes
Key Technical Specifications- Brake Rating: #7,000
- Brake Size: 12 inches (drum diameter) x 2 inches (shoe width).
- Orientation: Right-hand side (passenger/curb side) only.
- Flange Pattern: 5-bolt mounting flange.
- Adjustment Type: Manual-adjust system.
- Operating Voltage: 12V DC (compatible with all standard or aftermarket trailer brake controllers).
- Finish: Corrosion-resistant E-coat on the backing plate to resist rust and grime.
Same as:
- The direct Dexter equivalent to the Lippert 298276 electric brake assembly is the Dexter K23-181-00
SKU: LP-298276
