Air Controls, Heavy Truck, Lift Axle, Non Steering, Self Steering

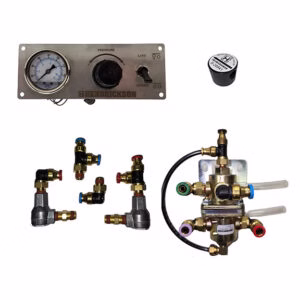

LC-SSI_R2 Hendrickson Air Control Kit for Steer & Non-Steer Lift Axles
On Sale!
*FREE UPS Ground
on orders of $99 or more!USA!
Air Controls, Heavy Truck, Lift Axle, Non Steering, Self SteeringLC-SSI_R2 Hendrickson Air Control Kit for Steer & Non-Steer Lift Axles
AVAILABLE NOW!
Genuine LC-SSI Hendrickson Air Control Kit replaces existing HAC-SSI and HAC-NSI auxiliary lift axle control kits with a change in air line plumbing. The panel has exactly the same measurements as the HAC series, 2-3/4 x 7-1/4 with a bolt pattern of 2.25 x 6-5/8.
- Lift in reverse application (can be used in a non-steer application by not wiring the solenoid).
- Note: A electrical relay may be required to connect to the reverse light circuit for the “lift in reverse” feature. Download the installation instructions below for more details.
- 12vdc applied to the lift solenoid raises the axle. This would be typically connected to the reverse light circuit. Axle lowers when power is removed.
- Note that some vehicles use a negative switched reverse light circuit and would require the use of a relay to operate properly (not included).
- 12vdc applied to the lift solenoid raises the axle. This would be typically connected to the reverse light circuit. Axle lowers when power is removed.
- Note: A electrical relay may be required to connect to the reverse light circuit for the “lift in reverse” feature. Download the installation instructions below for more details.
- Hendrickson Part Number B-38914-2 (LC-SSI_R2 )
- LC-SSI_R2 Supecedes LC-SSI
- This kit is for lifting/lowering the suspension only and does not control brakes.
SKU: HL-LC-SSI_R2 - Lift in reverse application (can be used in a non-steer application by not wiring the solenoid).
