Air Cylinders, Air Supply, Heavy Truck
B3000-259-H-5 AIRman Tail-a-Gater Tailgate Cylinder
On Sale!
*FREE UPS Ground
on orders of $99 or more!USA!
Air Cylinders, Air Supply, Heavy TruckB3000-259-H-5 AIRman Tail-a-Gater Tailgate Cylinder
B3000-259-H-5 (w/5 inch rod) AIRman Tail-a-Gater Tailgate Cylinder is made from heavy duty aluminum thick wall tubing with pivoting trunnion flange for harsh conditions.

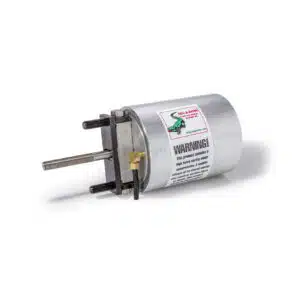

Does NOT include clevis and is exactly as pictured (rod extended). Drawing below & in Specs.
OE Numbers:
- MAC Trailer 27080090
- 2190022
- PB3000
- T212703259
Specs:
- Model Number: B3000-259-H5
- Bore Size: 6.00in
- Cylinder Length: 7-7/8in
- Stroke: 3.00in
- Extended Rod Length: 5in (Measuring from flat studded plate to end of rod)
- Rod Size: 5/8in
- Air inlet is on the back plate. Vent is on the pushrod side.
SKU: AP-B3000-259-H-5
