B2400-754 AIRman 5 Port Valve w/Solenoid

Availability:

Available on backorder
Compare

B2400-754 AIRman 5 Port Valve w/Solenoid

Specs:

  • Five 1/4” NPT Ports

This is a special order item, so there may be a short lead time. If this is a rush order, please call us.

$209.94 Each

Available on backorder

Estimate Shipping

Compare
AIRman Logo
B2400-754 AIRman 5 Port Valve w/Solenoid

B2400-754 AIRman 5 Port Valve w/Solenoid

5/2 SOLENOID SPRING RETURN W DUST EXTRUDERS AND ELBOW

Benefits & Features:

  • VALVE, .25 NPT, 5-2, SOL-SR, 12DC

Specs:

  • Five 1/4” NPT Ports

OE Numbers:

  • None

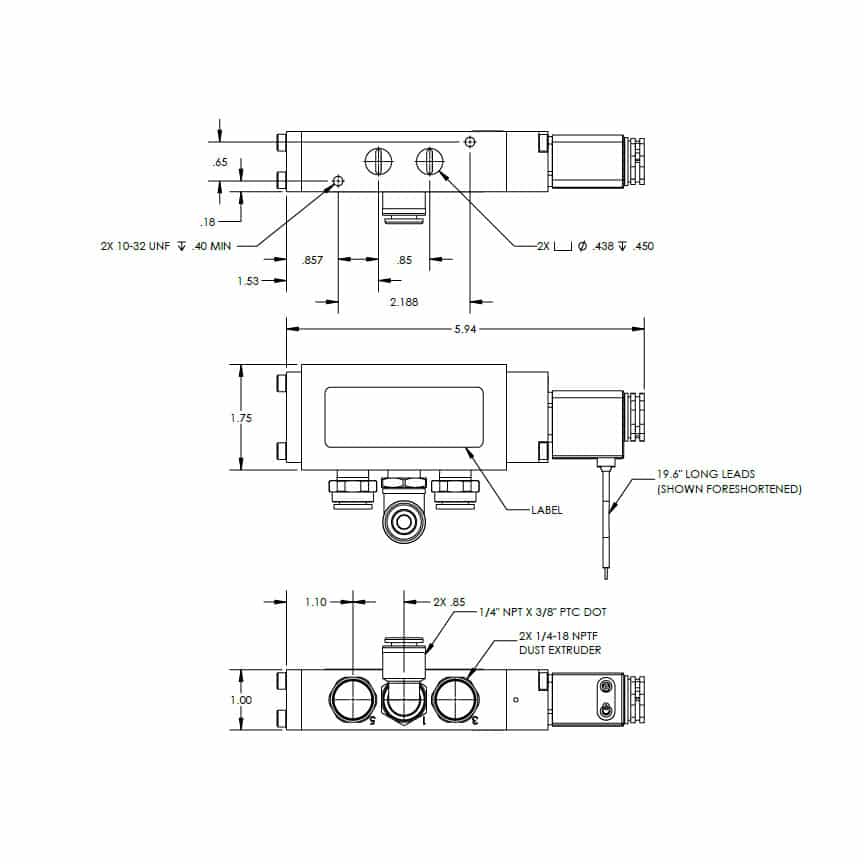

Drawing / Dimensions:

SKU: AP-B2400-754 Categories: , , Tag:
Weight 2 lbs

Drawing / Dimensions:

FUNCTION 2WAY NORMALLY CLOSED 8 STATION MANIFOLD
MECHANICAL MATERIALS CLEAR ANODIZED ALUMINUM
MANIFOLD, SS SOLENOID VALVE STEM
SEALS VITON
FASTENERS STAINLESS STEEL
MTG STYLE SIDE / TOP MOUNT
ASSY LUBRICATION N/A
FLOW .059″ Ø ORIFICE (1.5MM)
TEMP  -20° TO 125°F
FILTRATION N/A
SYSTEM LUBRICATION REQ’D N/A
PRESSURE RANGE MIN: VAC MAX: 150 psi
LEAK < 10sccm @120 psi
ELECTRICAL VOLTAGE 24 ± 5% VDC
CURRENT 6W PER STATION

Brand

AIRman Products

AIRman Products is the pneumatics expert in the commercial transportation, trucking and off-highway industries for Suspension Fill, Dump Valves and many other applications.
