Replacement for 320175 & 320121 Velvac 5 Port 2 Position Valve

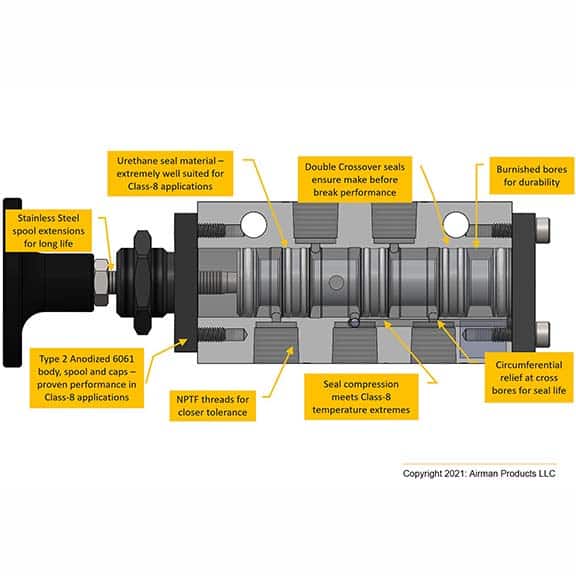

Threaded aluminum mounting boss for 3/4″ to 1″ diameter through hole mounting — nut included. Aluminum shaft with stainless steel extension and delrin detent ring provides easy identification of valve position and long cycle life — tested to over FIVE MILLION cycles .

Details:

• (5) 1/4″–18 FPT ports
• (2) 9/32″ dia. body mounting holes
• 3/4″-16 Panel Nut
• (Replaces Part No. 320107)
• This part is the same as 320175 & 320121 except side mounting hole spacing. Also, the stud mounting hole is 3/4 in instead of 1 in.

Application:

• Two position valve operates any double acting air cylinder.
• Three position valve operates systems where full air or vacuum pressure must be isolated.
• Replaces Tramec Sloan 320121, Tramec Sloan 320175 (Standard Panel Mount), Van Horn 17524-01, 1752401, Automann 170.V24203

Drawing and Spec Sheet: B2400-B38-CUSTOMER-PRINT-REV-B
