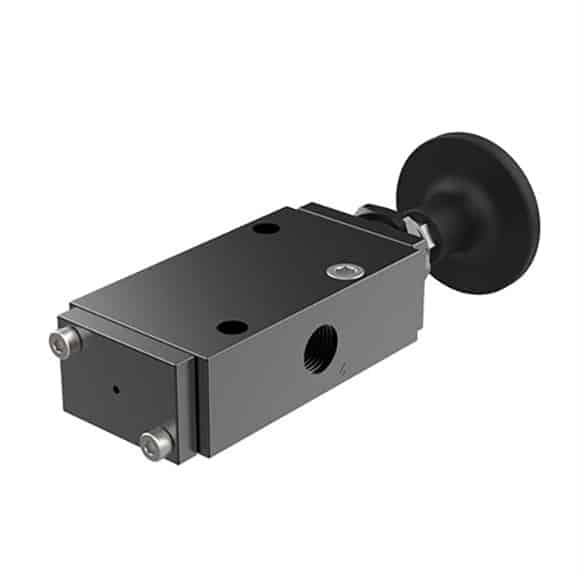

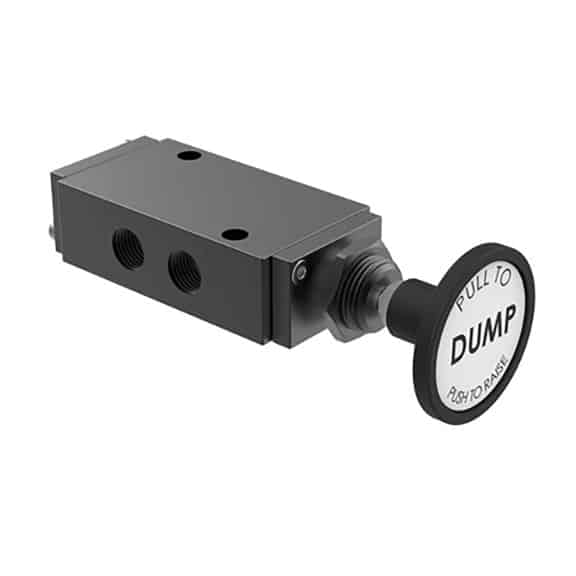

B2400-B43 AIRman 3-Port 2-Position Push-Pull Dump Valve

*FREE UPS Ground
on orders of $99 or more!

USA!

, , , , , , , ,

B2400-B43 AIRman 3-Port 2-Position Push-Pull Dump Valve

Availability:

19 in stock (can be backordered)
Compare

Threaded aluminum mounting boss for 3/4″ diameter through hole mounting, nut included.

Details:

  • (5) 1/4″–18 FPT ports
  • 1/8-27 NPTF optional gauge port.
  • (2) 9/32″ dia. body mounting holes
  • 3/4” Mounting Boss
  • Replaces Watson & Chalin 11861-03, Dragon 243-4007, RG Group TD-4200, Automann 170.1186103

$80.12 Each

19 in stock (can be backordered)

Estimate Shipping

Compare
AIRman Logo

B2400-B43 AIRman 3-Port 2-Position Push-Pull Dump Valve

B2400-B43 AIRman 3-Port 2-Position Push-Pull Dump Valve

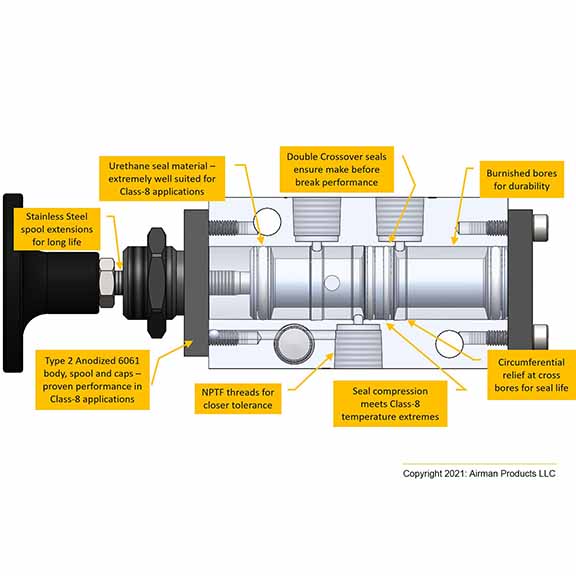

Threaded aluminum mounting boss for 3/4″ diameter through hole mounting — nut included. Aluminum shaft with stainless steel extension and delrin detent ring provides easy identification of valve position and long cycle life — tested to over FIVE MILLION cycles .

Details:

  • (5) 1/4″–18 FPT ports
  • 1/8-27 NPTF optional gauge port.
  • (2) 9/32″ dia. body mounting holes
  • 3/4” Mounting Boss
  • Replaces Watson & Chalin 11861-03, Dragon 243-4007, RG Group TD-4200, Automann 170.1186103

Application:

  • Two position push-pull dump valve.

Drawing and Spec Sheet:

B2400-B43-CUSTOMER-PRINT-REV-B

SKU: AP-B2400-B43 Categories: , , , , , , , , Tags: , , , ,
Weight 2 lbs

Brand

AIRman Products

AIRman Products is the pneumatics expert in the commercial transportation, trucking and off-highway industries for Suspension Fill, Dump Valves and many other applications.
