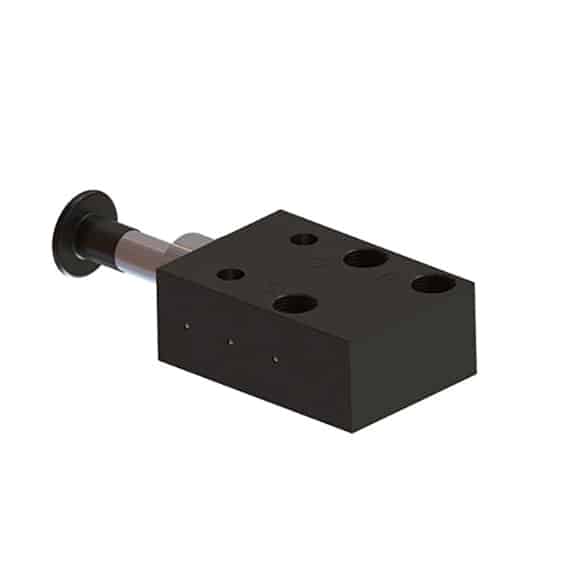

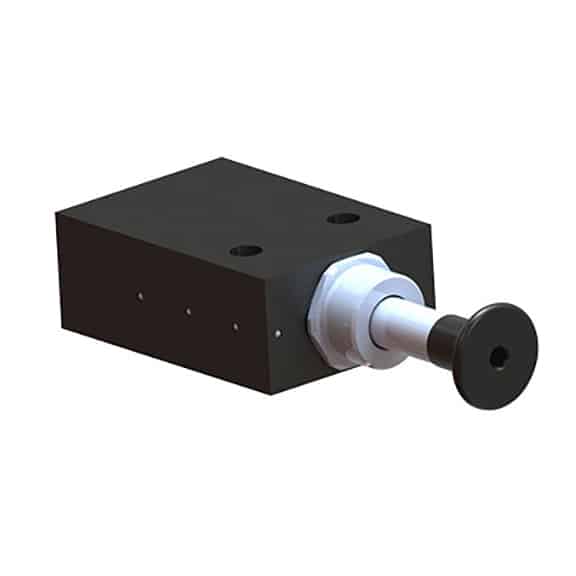

B2400-B48 AIRman Push-Pull 3-Port Valve w/Pilot
Availability:
2 in stock (can be backordered)
B2400-B48 AIRman Push-Pull 3-Port Valve w/Pilot for Slider Release
This valve made by AIRman is used in many applications like controlling air tailgate cylinders, suspension dump valves, and others.
Specs:
- Push/Pull Valve, Air Pilot
- Ports:
- 1/4″ NPT Inlet and Outlet
- 1/4” NPTF Reset Pilot Port
- Replaces FleetSpec AK12401N
- .344in Nounting Hole Diameter
- Made in the USA!
- Replaces; 7806X1090, A1-7806X1090, A17806X1090, 170.V23204
$84.66 Each
2 in stock (can be backordered)
B2400-B48 AIRman Push-Pull 3-Port Valve w/Pilot
B2400-B48 AIRman Push-Pull 3-Port Valve w/Pilot for Slider Release
This valve made by AIRman is used in many applications like controlling air tailgate cylinders, suspension dump valves, and others.
Specs:
- Push/Pull Valve, Air Pilot
- Ports:
- 1/4″ NPT Inlet and Outlet
- 1/4” NPTF Reset Pilot Port
- Replaces FleetSpec AK12401N
- .344in Nounting Hole Diameter
- Made in the USA!
- Replaces; 7806X1090, A1-7806X1090, A17806X1090, 170.V23204

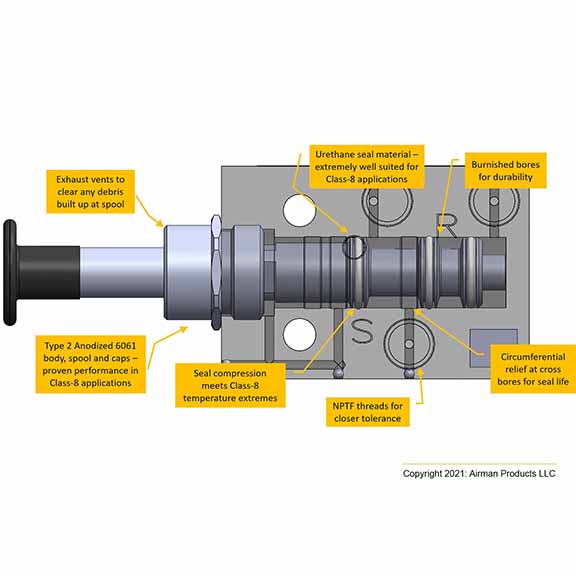

Drawing and Spec Sheet:
Brand
AIRman Products
AIRman Products is the pneumatics expert in the commercial transportation, trucking and off-highway industries for Suspension Fill, Dump Valves and many other applications.
