HD25012Y HD Lighting Round Amber Marker 2-1/2” 12 LED

HD25012Y HD Lighting Round Amber Marker 2-1/2” 12 LED

HD25012Y HD Lighting Round Amber Marker 2-1/2” 12 LED

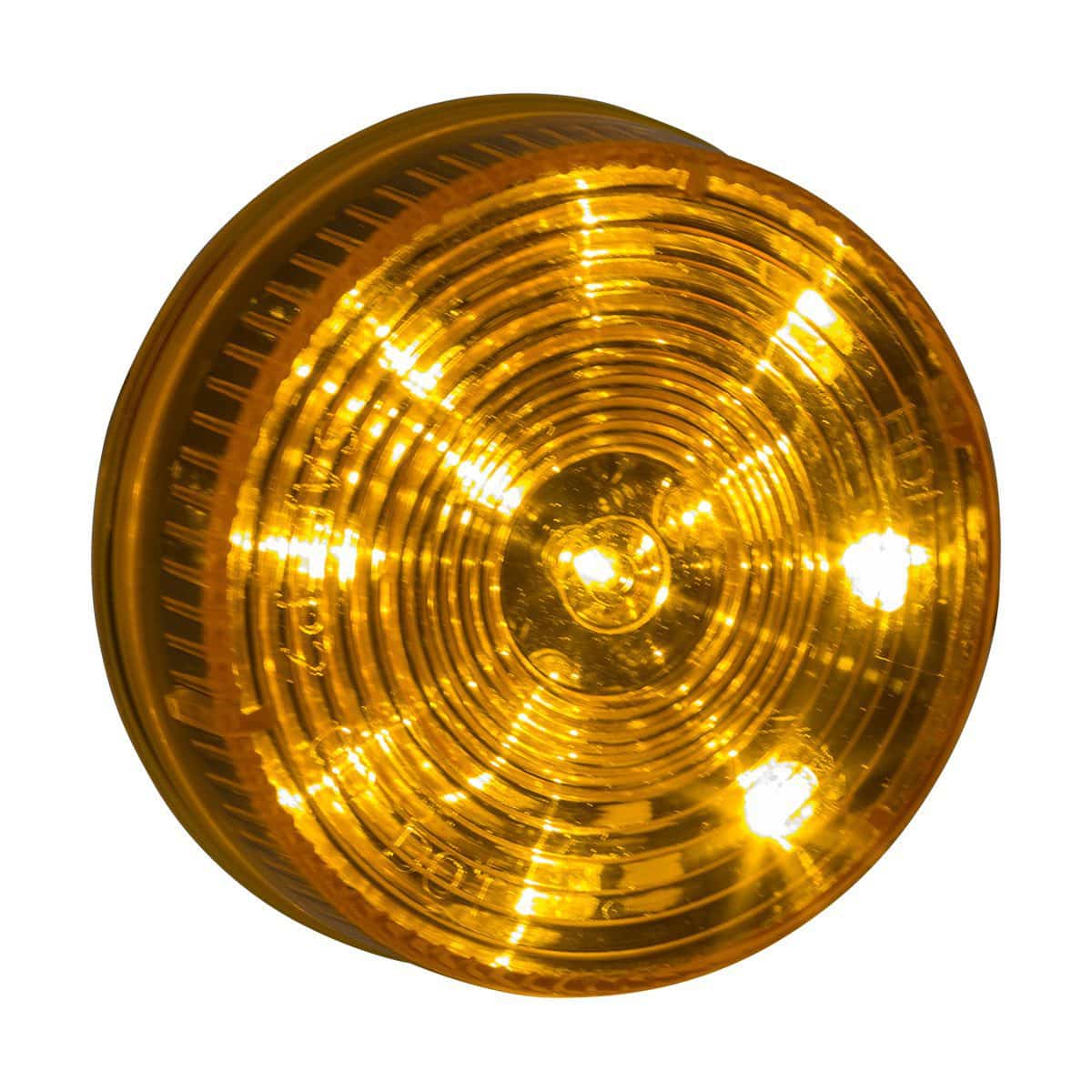

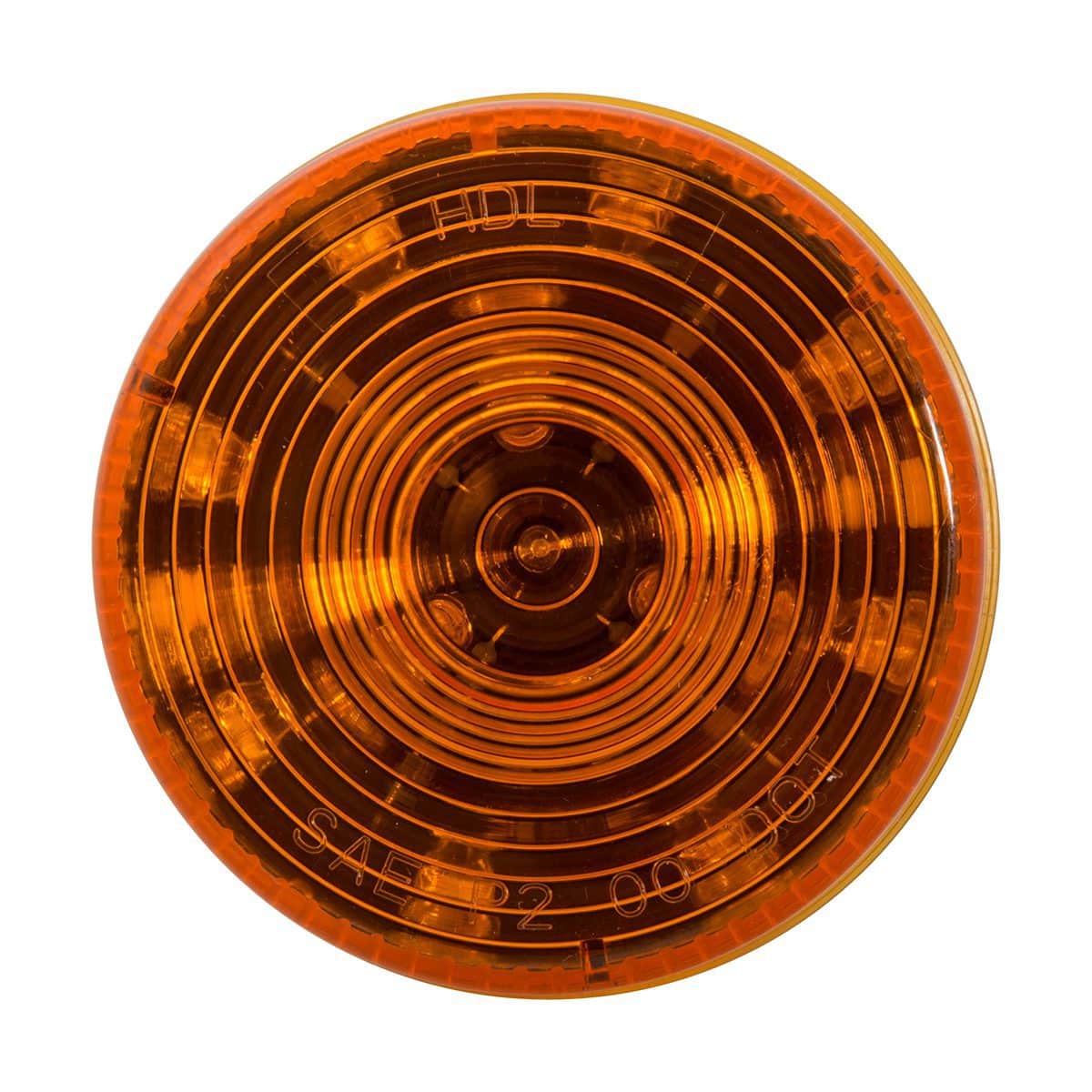

2.5″ Round Yellow (Amber) LED Clearance Marker Light. Designed to be used as a clearance marker or a side marker light. Durable Poly-carbonate Lens & Housing. Completely Sealed & Welded Assembly to prevent water intrusion. Uses Industry Standard PL2 Connector. Non polarity-sensitive. Standard 2.5″ size makes retrofit or replacement quick and easy.

TECHNICAL SPECIFICATIONS

• LED: 5mm
• Dimensions: 2.35″ x .85″
• Volt Range: 7.5 – 14 VDC
• Stop/Turn: 125mA
• Amp Draw – Marker: 60mA
• Same as HD25012Y-X

FEATURES

• Universal Design for Use as Clearance Marker or ID Light
• Poly-carbonate Lens & Housing
• Conformally Coated Electronics
• Ultrasonically Welded Lens to Body

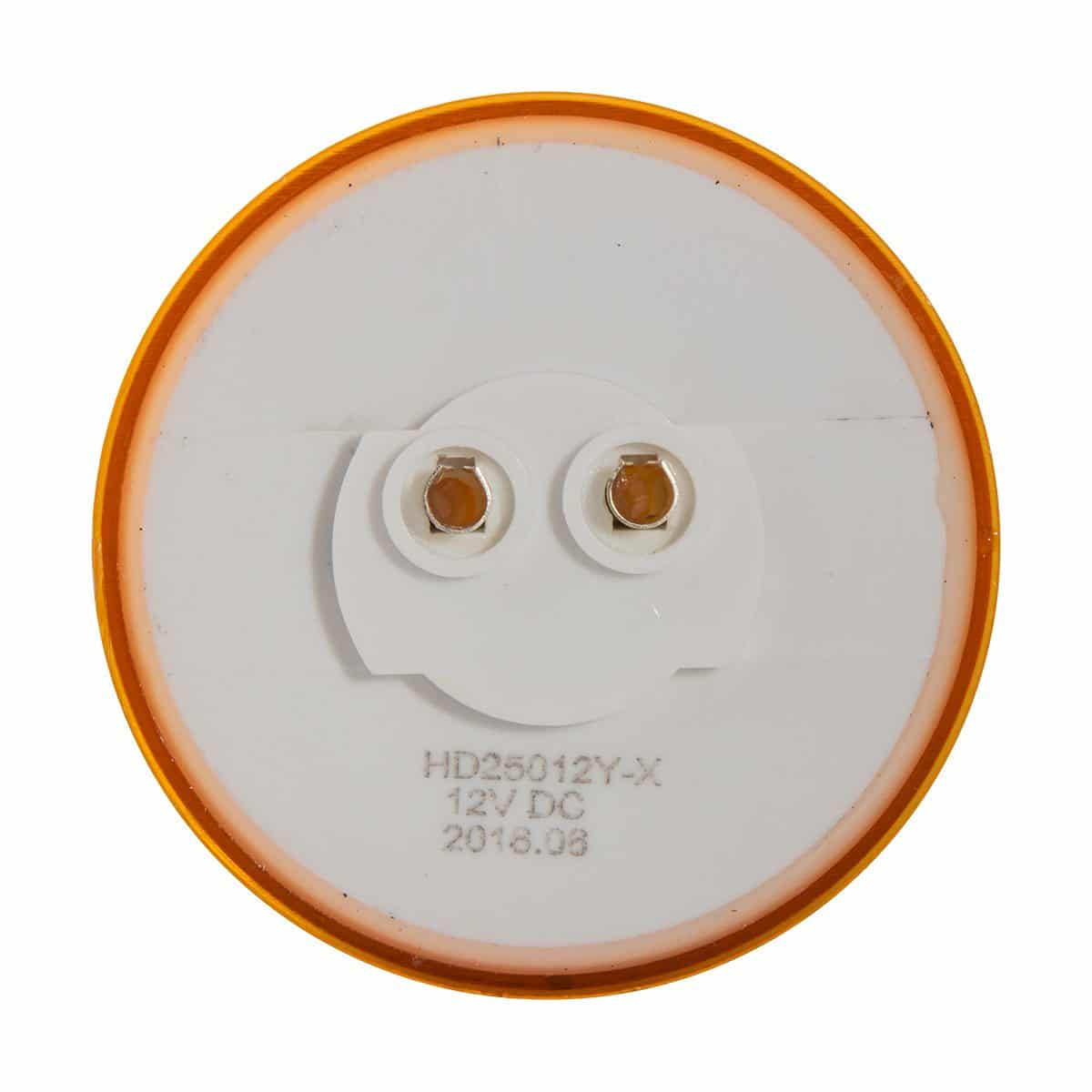

• Uses Industry Standard PL2 Connector
• Non Polarity Sensitive

OPTIONAL ACCESSORIES

• Grommet HD60095G
• Chrome Grommet Cover HD60096PC
• Connectors HD00020, HD00021
