HD25013RC HD Lighting Round Red-Clear Marker 2-1/2” 13 LED

HD25013RC HD Lighting Round Red-Clear Marker 2-1/2” 13 LED

HD25013RC HD Lighting Round Red-Clear Marker 2-1/2” 13 LED

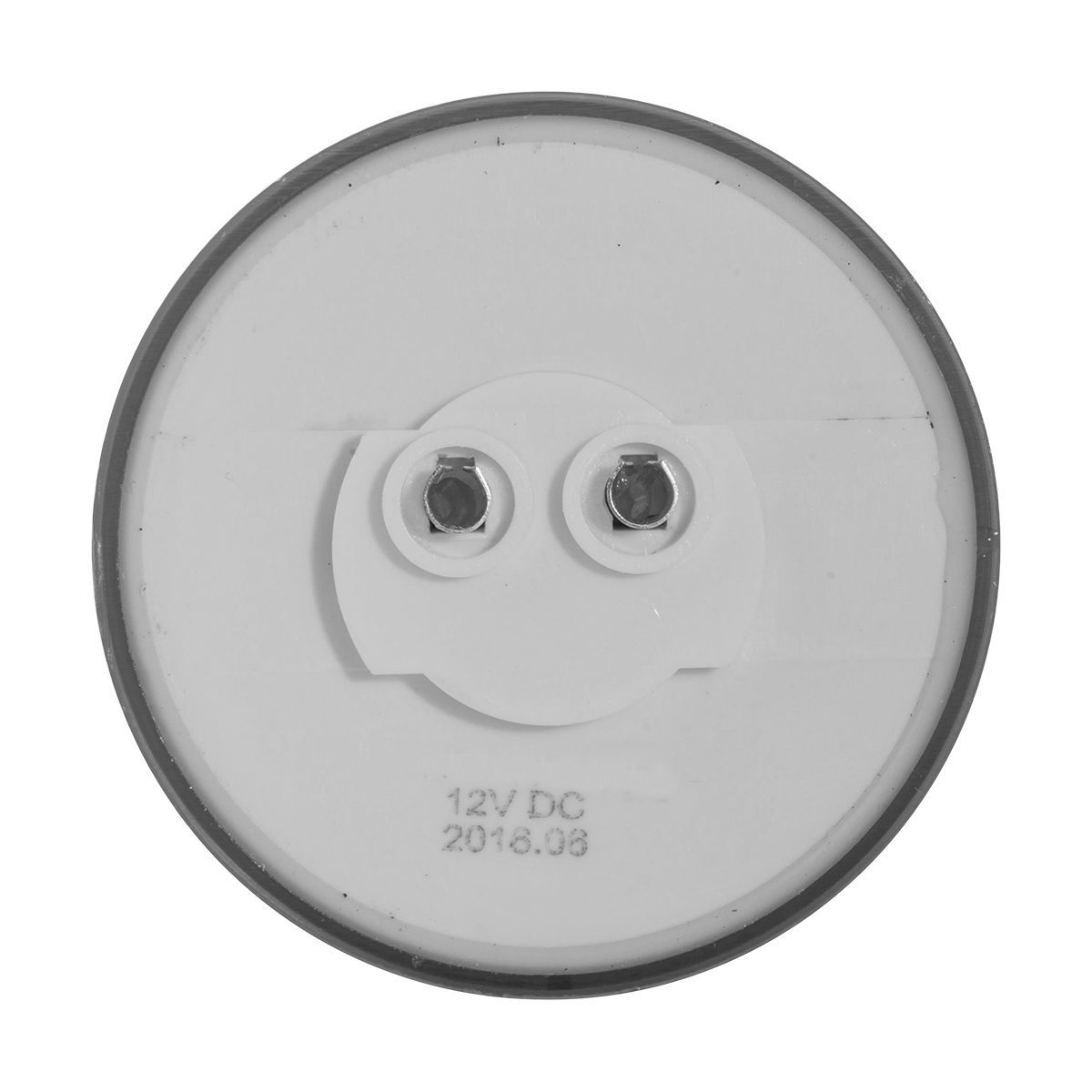

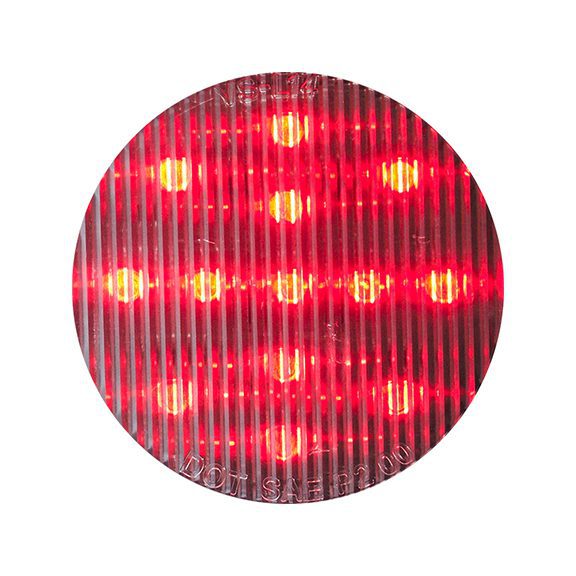

2.5″ Round Red/Clear LED Clearance Marker Light. Designed to be used as a clearance marker or a side marker light. Durable Poly-carbonate Lens & Housing. Completely Sealed & Welded Assembly to prevent water intrusion. Uses Industry Standard PL2 Connector. Non polarity-sensitive. Standard 2.5″ size makes retrofit or replacement quick and easy.

TECHNICAL SPECIFICATIONS

• LED: SMD
• Dimensions: 2.52″ x 0.71″
• Volt Range: 7.5 – 14 VDC
• Stop/Turn: 125mA
• Amp Draw – Marker: 120mA

FEATURES

• Universal Design for Use as Clearance Marker, Side Marker or ID Light
• PC Lens and Housing
• Epoxy Encapsulated Electronics
• Requires Industry Standard PL2 Connector

OPTIONAL ACCESSORIES

• Grommet HD25095G or HD25195G
• Chrome Bezel HD25096PC
• Connectors HD00020, HD00021
