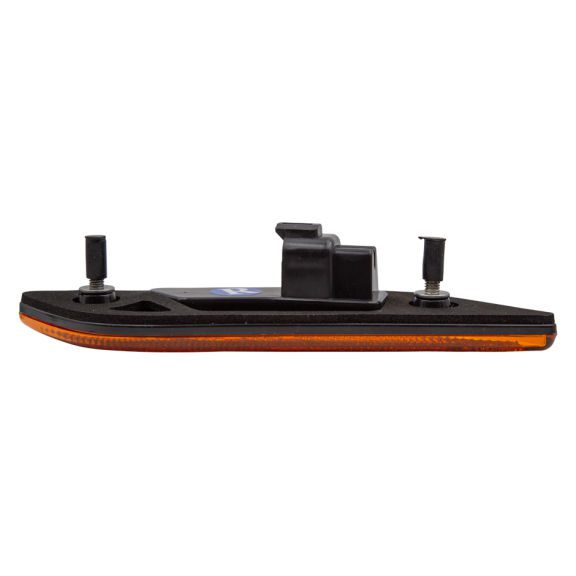

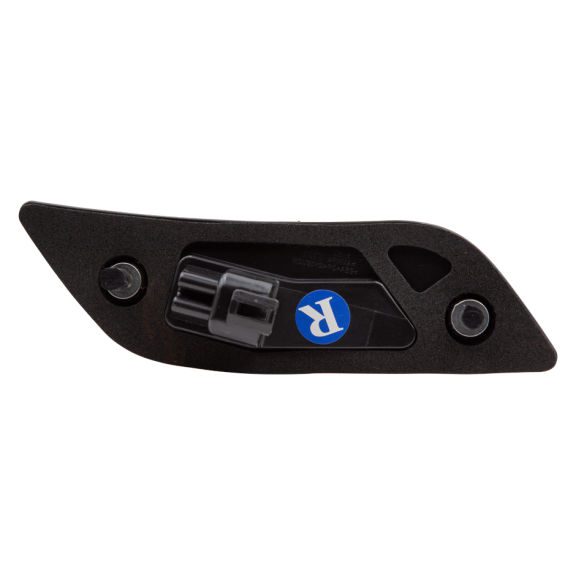

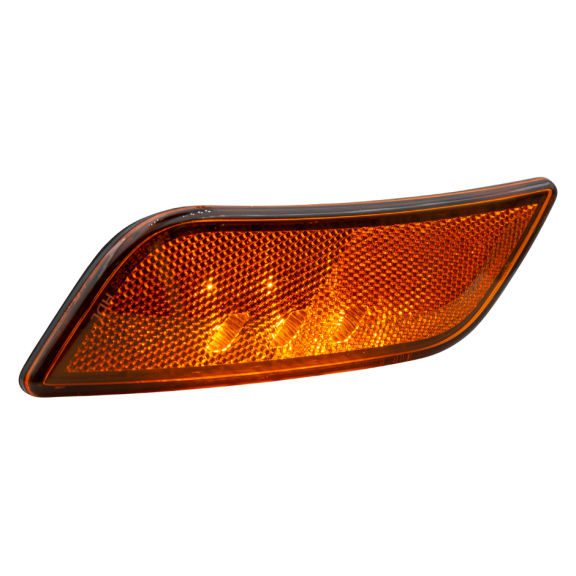

HD82003RY HD Lighting PACCAR® LED RH Side Turn/Marker Amber
HD82003RY HD Lighting PACCAR® LED RH Side Turn/Marker Amber
PACCAR® side turn fender marker light. Designed as a direct replacement (fits factory plug harness) for Kenworth® / Peterbilt® model trucks.
Replaces – P54-6147R, P54-1212-100R & others.
TECHNICAL SPECIFICATIONS
- Right Side
- LED: SMD
- Dimensions: 7.57” x 2.10” x 1.75”
- Volt Range: 7.5 – 14 VDC
- High: 150mA
- Low: 60mA
- IP Rating: 65
FEATURES
- OEM Compatibility with PACCAR® P54-6147, P54-1212-100 | Left, P54-6147R, P54-1212-100R | Right
- Impact Resistant Polycarbonate Lens
- ABS Housing | Ultrasonically Welded
- Reflex Lens
- Sealed Circuit Board
- 3-Pin Weather Pack Connector | Mates to Factory Harness
- DOT SAE | E2A3P3
