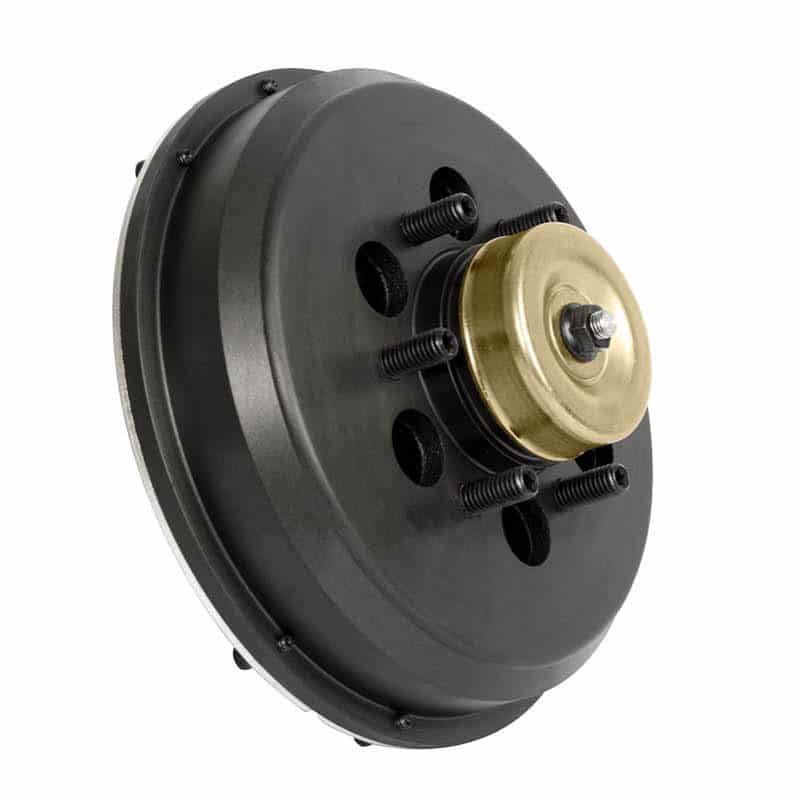

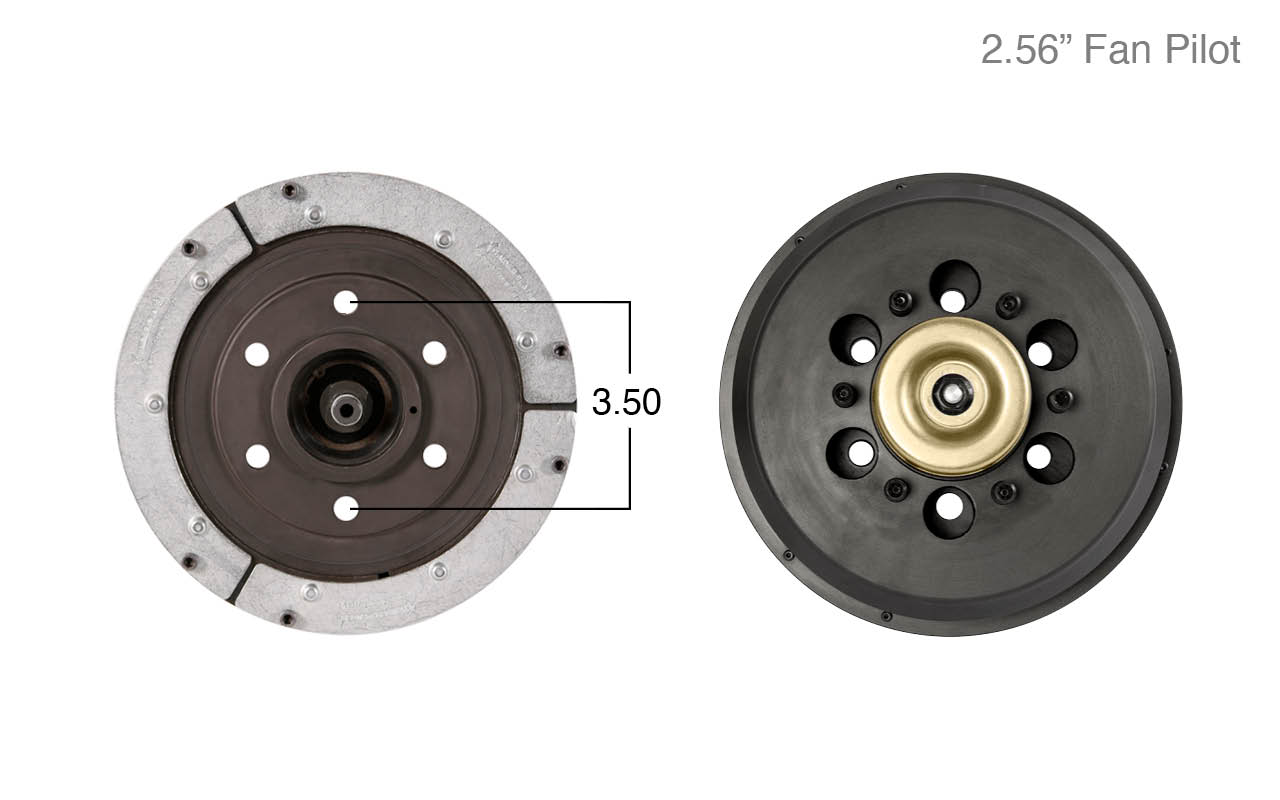

Kit Masters 8901N Kysor-Style Fan Clutch 2.56 Fan Pilot

Kit Masters 8901N Kysor-Style Fan Clutch 2.56 Fan Pilot

Kit Masters 8901N Kysor-Style Fan Clutch 2.56 Fan Pilot

The 8901N from Kit Masters features unmatched dual seal performance along with Auto Lock, our patented fail-safe innovation. It can be used to replace K22, K26, K30 and K32 rear air fan clutches, including part #1090-09650-01.

A Truly Fail-Safe Fan Clutch
Kit Masters’ patented Auto Lock feature will AUTOMATICALLY LOCK UP fan clutches when the friction material nears the end of its life, allowing the vehicle to finish its trip.

Repair or replace the fan clutch in your shop, at your convenience. No outside labor costs or tow bills.

Two O-Rings are Better than One!

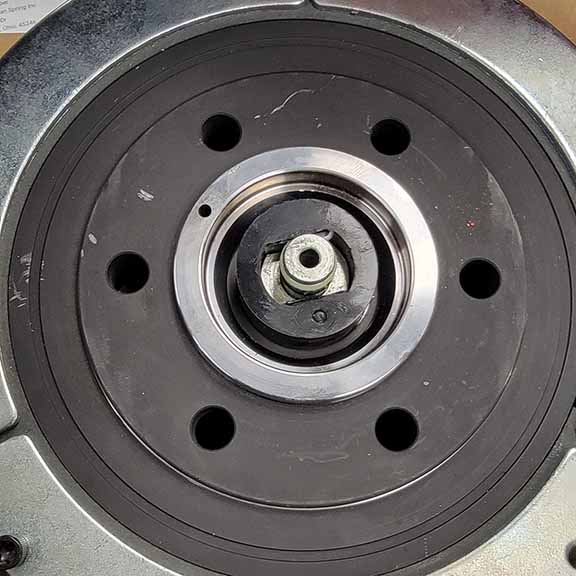

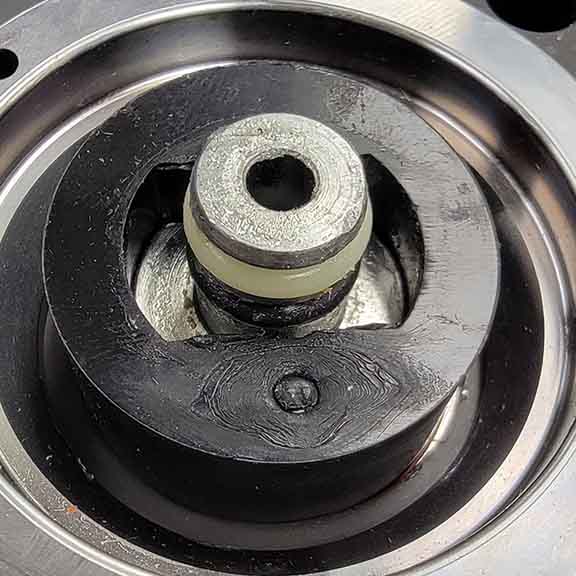

Kit Masters’ extended shaft allows for the addition of a urethane o-ring for resilience to motion, and a Viton® o-ring to create a superior air barrier.

To maintain your product warranty, you must replace pulley bearings when rebuilding your fan clutch. The bearings are not included in the kit and will vary by application.

Replaces OEM Part #:
8801x, 10900950001, 1090-09500-01, 10900850001, 1090-08500-01, 10900960001, 1090-09600-01, 10900965001, 1090-09650-01, 10900965001B, 1090-09650-01B, 10900960001B, 1090-09600-01B, 9908500, 2509380c91, 2514343C91, 2602141c91, 3415013, 3915592, 85111808, 85108716, 85114233, 85134489, f8hz8a627ua, f8hz-8a627-ua, 9908503, 9908501, 10900950001, 1090-09500-01B, 2501022c91, 65140701, 6514-070-1, 010019361, 2587245c91

8901N-Instructions
