SUSPINC1 Suspensions Incorporated Steerable Beam Re-Bush Kit

SUSPINC1 Suspensions Incorporated Steerable Beam Re-Bush Kit

SUSPINC1 Suspensions Incorporated Steerable Beam Re-Bush Kit

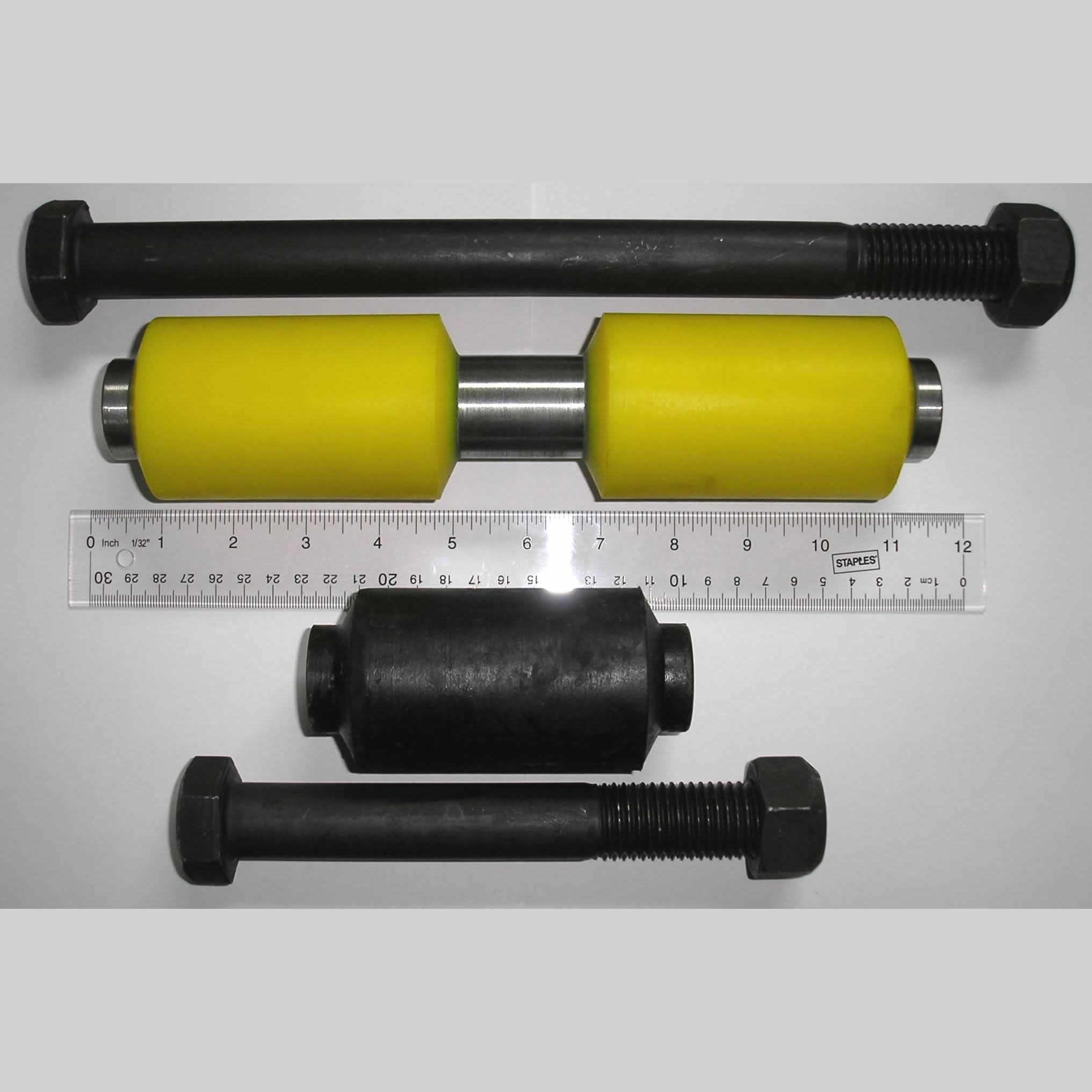

Kit contains enough parts to re-bush ONE lower beam.

Contents;

1. One Bolt (1×13 with nut) and Bushing for FRONT of lower beam.
2. One Bolt (1×7.5 with nut) and Bushing for REAR of lower beam.
3. All Bolts are 1 inch diameter.
4. Two kits are needed to do ONE suspension.

The Rear Beam Bushing (long one) Measures;

• Length 10.5 in. (steel tube)
• Diameter of bushing (not beam hole) 2.344 in.
• Inner diameter for bolt 1 in.
• Advance/Terex Part No. 22282

The Front Beam Bushing (short one) Measures;

• Length 4.75 in. (steel tube)
• Diameter of bushing (not beam hole) 2.306 in.
• Inner diameter for bolt 1 in.
• Advance/Terex Part No. 22283
