Drums, Hubs, Light Trailer, Wheel End
2024013264 Lippert 10″ Brake Hub Complete Kit w/Installed Bearings 3.5k
Drums, Hubs, Light Trailer, Wheel End2024013264 Lippert 10″ Brake Hub Complete Kit w/Installed Bearings 3.5k
2024013264 Lippert 10″ Brake Hub Complete Kit w/Installed Bearings 3.5k
Key Technical Specifications
- Brake Hub Assembly – Axle rating: 3,500 lbs.; Bolt pattern: 5 on 4.5″; Stud size: 1/2″
- Dust Cap with Plug – For 2,000 to 3,500-lb. axle capacities
- Cotter Pin – Overall length: 1-3/4″
- 6-slot Castle Spindle Nut – 6-slot castle nut; 1″-14 threads; 1-1/2″ hex; 9/16″ tall
- Round spindle washer – Inside diameter: 1.03″; Outside diameter: 1.68″
- Trailer Lug Nuts – Fit 1/2″-20 lug studs; 60-degree cone design
Same as:
- Lippert Drum Number 814210
- Lippert 814200 (Without lubed dust cap, cotter pin, castle nut, washer, lug nuts)
- Lippert Bulk 126003
- This hub also replaces the Dexter Dexter K08-201-05 (or 8-201-5UC3), or bare hub 008-201-05
SKU: LP-2024013264 -
Hubs, Light Trailer, Wheel End

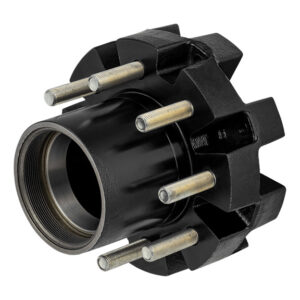

2024029112 Lippert Hub with Races and Studs – 12,000-lb. Axles
2024029112 Lippert Hub with Races and Studs- 12-16,000-lb. Axles
Key Technical Specifications- Axle Capacity: 12,000 lbs. (Note: Often cataloged alongside 16,000-lb. variants, but the 2024029112 model specifically handles 12k capacity).
- Bolt Pattern: 8 on 6-1/2 inches.
- Stud Size: 5/8 inch (zinc-plated to resist corrosion).
- Wheel Size Compatibility: 16 inches to 17.5 inches.
- Brake Compatibility: Threaded idler hub configuration (A drum can be bolted to the rear of the hub with the threaded holes).
- Dust Cap Fitment: Accepts thread-in Valcrum or robust threaded dust caps.
Includes
- (1) inner bearing race
- (1) outer bearing race
- (1) Hub with Studs
This hub also replaces Dexter 8-214-8 or 008-214-08 hub.
SKU: LP-2024029112 -
Air Supply, Gauges, Heavy Truck, Load Scales, Load Scales
250-2AXL-FF Right Weigh Tandem Liquid Analog Gauge
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Supply, Gauges, Heavy Truck, Load Scales, Load Scales250-2AXL-FF Right Weigh Tandem Liquid Analog Gauge
Tandem Axle Load Scale for suspensions with One Leveling Valve
The 250-2AXL-FF provides reliable on-the-ground axle weight measurement with clear readings displayed on its 2.5″ gauge.
- Replaces the 250-54-FF
- 250-2AXL-FF has a Chrome Bezel.
- 2.5” gauge with 3-3/8” flange.
- 3 mounting holes.
- Fitting is centered on the rear, 1/4NPT.
- Kit does not include air hoses/fittings.
- Simple installation and calibration.
- Up to 54k Weight Display.
SKU: RL-250-2AXL-FF -
Air Supply, Gauges, Heavy Truck, Load Scales, Load Scales
250-30-LM Right Weigh Single Axle Liquid Analog Gauge
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Supply, Gauges, Heavy Truck, Load Scales, Load Scales250-30-LM Right Weigh Single Axle Liquid Analog Gauge
Single Axle Load Scale for suspensions with One Leveling Valve
- 250-30-LM has a Chrome Bezel.
- 2.5” gauge with rolled edge.
- Fitting is on the bottom, 1/4NPT.
- Kit does not include air hoses/fittings.
- Simple installation and calibration.
- Up to 30k Weight Display.
SKU: RL-250-30-LM -
Air Supply, Gauges, Heavy Truck, Load Scales, Load Scales
250-54-LM Right Weigh Single Axle Liquid Analog Gauge
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Supply, Gauges, Heavy Truck, Load Scales, Load Scales250-54-LM Right Weigh Single Axle Liquid Analog Gauge
Single Axle Load Scale for suspensions with One Leveling Valve
- Same as 250-2AXL-LM
- 250-54-LM has a Chrome Bezel.
- 2.5” gauge with rolled edge.
- Fitting is on the bottom, 1/4NPT.
- Kit does not include air hoses/fittings.
- Simple installation and calibration.
- Up to 54k Weight Display.
SKU: RL-250-54-LM -
Air Supply, Gauges, Heavy Truck, Load Scales, Load Scales
250-BR Right Weigh 2-1/2 in Liquid Gauge Flange Bracket
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Supply, Gauges, Heavy Truck, Load Scales, Load Scales250-BR Right Weigh 2-1/2 in Liquid Gauge Flange Bracket
250-BR Right Weigh 2-1/2 in Liquid Gauge Flange Bracket
Optional mounting bracket for both the 250-FF front flange and the 250-LM lower mount gauges.
- Includes mounting hardware.
- Gauge sold separately.
- Fits 250 series 2.5″ Exterior Analog Liquid Filled Right Weigh Gauges.
SKU: RL-250-BR
