Air Controls
Showing 25–48 of 67 results
-
Air Controls, Air Supply, Air Valves & Parts, Dump Valves, Dump Valves, Heavy Truck, Lift Axle, Push-Pull, Suspension
B2400-B43 AIRman 3-Port 2-Position Push-Pull Dump Valve
*FREE UPS Ground
on orders of $99 or more!USA!
Air Controls, Air Supply, Air Valves & Parts, Dump Valves, Dump Valves, Heavy Truck, Lift Axle, Push-Pull, SuspensionB2400-B43 AIRman 3-Port 2-Position Push-Pull Dump Valve
Threaded aluminum mounting boss for 3/4″ diameter through hole mounting, nut included.
Details:
- (5) 1/4″–18 FPT ports
- 1/8-27 NPTF optional gauge port.
- (2) 9/32″ dia. body mounting holes
- 3/4” Mounting Boss
- Replaces Watson & Chalin 11861-03, Dragon 243-4007, RG Group TD-4200, Automann 170.1186103
SKU: AP-B2400-B43 -
Air Supply, Gauges, Gauges, Heavy Truck, Suspension
K1100-353 AIRman Silicone Filled Guage 0-160 PSI
*FREE UPS Ground
on orders of $99 or more!USA!
Air Supply, Gauges, Gauges, Heavy Truck, SuspensionK1100-353 AIRman Silicone Filled Guage 0-160 PSI
This silicone filled guage valve is used to on trucks, trailers, and other applications. This is a very high quality guage and should last for many years.
Specs:
- Ports:
- 1/8″ NPTM Inlet
- 0-160 Air Pressure Range
- Can fit a 2” Mounting Hole (Not designed for a panel mount. Does not come with mounting bracket)
- Silicone Filled to prevent vibration damage
- Temp range -40F to 160F
- Stainless Steel Case
- Acrylic Lens
- Made in the USA!
Cross-Reference:
- 021-55419
- 7000-013
SKU: AP-K1100-353 - Ports:
-
Air Controls, Air Supply, Air Valves & Parts, Control Valves, Dump Valves, Heavy Truck, Lift Axle, Pilot Valves
10376-02 Watson-Chalin 5-Port Pilot Valve
*FREE UPS Ground
on orders of $99 or more!USA!
Air Controls, Air Supply, Air Valves & Parts, Control Valves, Dump Valves, Heavy Truck, Lift Axle, Pilot Valves10376-02 Watson-Chalin 5-Port Pilot Valve
This valve is used in many applications like controlling air tailgate cylinders, suspension dump valves, and others.
Specs:
- Spring Return-Air Pilot
- This valve has a new mounting hole configuration compared to the original Watson & Chalin 10376-02.
- Ports:
- Main Ports 1/4″ NPTF (x5)
- 1/8-27 NPTF Pilot Port
- Replaces Watson & Chalin 10376-02, Alkon TD4320, Apsco VX-4-AP
- Made in the USA!
SKU: WC-10376-02 -
Air Controls, Air Supply, Air Valves & Parts, Dump Valves, General Purpose, Heavy Truck, Lift Axle, Pilot Valves, Relay Valves
170.90054079 Neway Type 3-Way Pilot Valve
*FREE UPS Ground
on orders of $99 or more!Air Controls, Air Supply, Air Valves & Parts, Dump Valves, General Purpose, Heavy Truck, Lift Axle, Pilot Valves, Relay Valves170.90054079 Neway Type 3-Way Pilot Valve
170.90054079 Neway Type 3-Way Pilot Valve
This valve by Automann is comparable as a Neway 3-Way Valve numbers 90054079, 90554206, and 90054206.
SKU: AU-170.90054079 -
Air Controls, Air Supply, Air Valves & Parts, Control Valves, Heavy Truck, Lift Axle, Ratio Valves
17369 Watson-Chalin Ratio Valve
*FREE UPS Ground
on orders of $99 or more!Air Controls, Air Supply, Air Valves & Parts, Control Valves, Heavy Truck, Lift Axle, Ratio Valves17369 Watson-Chalin Ratio Valve
Used primarily in vehicular air brake systems, this valve is a three-way, compensating, pilot pressure-operated relay valve. This valve delivers an output pressure that is proportional to the amount of control pressure applied. There is an adjustment which allows the output/control pressure ratio to be changed. It is also used in some lift axle applications.
SKU: M-R986038 -
Air Controls, Air Supply, Air Valves & Parts, Heavy Truck, Lift Axle, Quick Release
7800 Sealco Quick Release Valve – Meritor
*FREE UPS Ground
on orders of $99 or more!Air Controls, Air Supply, Air Valves & Parts, Heavy Truck, Lift Axle, Quick Release7800 Sealco Quick Release Valve – Meritor
7800 Sealco Quick Release Valve – Meritor
Features:
- Genuine Sealco Valve
- Vents pressure quickly at the valve rather than the supply source.
- Holding feature retains delivery pressure during small supply side changes.
- Great for holding pressure in gates and locking devices.
- Twin delivery ports and frame mounts incorporated.
Specs:
- Inlet Port: 1/4″ NPT
- Outlet Port: 1/4″ NPT
- Height: 2-1/4″
- Width: 2-1/4″
SKU: M-RSL7800 -
Air Controls, Air Supply, Air Valves & Parts, Dump Valves, Heavy Truck, Lift Axle, Solenoid Valves
B2400-B41 AIRman 5-Port Solenoid w/ Mufflers
*FREE UPS Ground
on orders of $99 or more!USA!
Air Controls, Air Supply, Air Valves & Parts, Dump Valves, Heavy Truck, Lift Axle, Solenoid ValvesB2400-B41 AIRman 5-Port Solenoid w/ Mufflers
This valve made by AIRman is used in many applications like controlling air tailgate cylinders, suspension dump valves, and others.
Specs:
- Solenoid – Spring Return w/Manual Override
- 12v DC
- 18in Leads
- Ports:
- Main Ports 1/4″ NPTF (x5)
- Replaces Velvac 320131, 320178, Tramec Sloan 401263, Tectran 29SS4, Apsco VE2, Alkon P070SS11560, Parker P2LBX592ESNDCG45, P2LBX592ESNDCG47, Automann 173.V34202
- Made in the USA!
SKU: AP-B2400-B41 -
Air Controls, Air Supply, Air Valves & Parts, Heavy Truck, Lift Axle, Push-Pull
B2400-B48 AIRman Push-Pull 3-Port Valve w/Pilot
*FREE UPS Ground
on orders of $99 or more!USA!
Air Controls, Air Supply, Air Valves & Parts, Heavy Truck, Lift Axle, Push-PullB2400-B48 AIRman Push-Pull 3-Port Valve w/Pilot
B2400-B48 AIRman Push-Pull 3-Port Valve w/Pilot for Slider Release
This valve made by AIRman is used in many applications like controlling air tailgate cylinders, suspension dump valves, and others.
Specs:
- Push/Pull Valve, Air Pilot
- Ports:
- 1/4″ NPT Inlet and Outlet
- 1/4” NPTF Reset Pilot Port
- Replaces FleetSpec AK12401N
- .344in Nounting Hole Diameter
- Made in the USA!
- Replaces; 7806X1090, A1-7806X1090, A17806X1090, 170.V23204
SKU: AP-B2400-B48 -
Air Controls, Air Valves & Parts, Heavy Truck, Lift Axle, Pressure Protection Valves

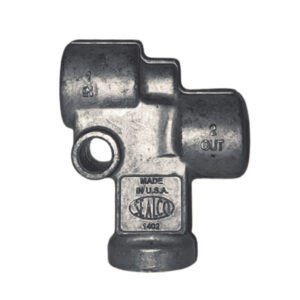

B2400-B80 AIRman Pressure Protection Valve 1/4 NPT – 70 PSI
*FREE UPS Ground
on orders of $99 or more!USA!
Air Controls, Air Valves & Parts, Heavy Truck, Lift Axle, Pressure Protection ValvesB2400-B80 AIRman Pressure Protection Valve 1/4 NPT – 70 PSI
This valve made by AIRman is used to protect air systems in the event of loss of pressure.
Specs:
- Ports: 1/4″ NPT
- Pressure Protection Set Point is 70 PSI
- Used in B2400-B03, B2400-B04, and old HAC-SSI, HAC-NSI kits.
- Made in the USA!
Cross-Reference:
- Hendrickson VS-1128, VS-1128, R-009689, 009689, 9689
- More below.
SKU: AP-B2400-B80 -
Air Controls, Air Valves & Parts, Heavy Truck, Lift Axle, Pressure Protection Valves
B2400-B81 AIRman Pressure Protection Valve 3/8 NPT – 70 PSI
*FREE UPS Ground
on orders of $99 or more!USA!
Air Controls, Air Valves & Parts, Heavy Truck, Lift Axle, Pressure Protection ValvesB2400-B81 AIRman Pressure Protection Valve 3/8 NPT – 70 PSI
This valve made by AIRman is used to protect air systems in the event of loss of pressure.
Specs:
- Ports: 3/8″ NPT
- Pressure Protection Set Point is 70 PSI
- Made in the USA!
Cross-Reference:
- Sealco 140200
- Velvac 032217
- Automann 170.3870VA
- more below…
SKU: AP-B2400-B81 -
Air Controls, Air Supply, Air Valves & Parts, Dump Valves, Dump Valves, Heavy Truck, Lift Axle, Quick Release, Suspension
B2400-B82 AIRman Quick Release Valve 1/4 NPT QR2
*FREE UPS Ground
on orders of $99 or more!USA!
Air Controls, Air Supply, Air Valves & Parts, Dump Valves, Dump Valves, Heavy Truck, Lift Axle, Quick Release, SuspensionB2400-B82 AIRman Quick Release Valve 1/4 NPT QR2
This valve is used to exhaust the air quickly on air ride suspensions and other applications.
Specs:
- Ports: 1/4″ NPT
- Made in the USA!
Cross-Reference:
- Ridewell 1230078
- Hendrickson R004348-1, R0043481
- Norgren QEV13AA1H00S
- Humphrey QE4, QR2
- Automann 170.QR1401A
SKU: AP-B2400-B82 -
Air Controls, Air Supply, Air Valves & Parts, Dump Valves, Dump Valves, Heavy Truck, Lift Axle, Quick Release, Suspension
B2400-B83 AIRman Quick Release Valve 3/8 NPT QR3
*FREE UPS Ground
on orders of $99 or more!USA!
Air Controls, Air Supply, Air Valves & Parts, Dump Valves, Dump Valves, Heavy Truck, Lift Axle, Quick Release, SuspensionB2400-B83 AIRman Quick Release Valve 3/8 NPT QR3
This valve is used to exhaust the air quickly on air ride suspensions and other applications.
Specs:
- Ports: 3/8″ NPT
- Made in the USA!
Cross-Reference:
- AK00026N
- Norgren T70A3800
- Sealco 510-25001-00
- more below…
SKU: AP-B2400-B83 -
Heavy Truck, Air Supply, Dump Valves, Pilot Valves, Quick Release, Lift Axle, Air Controls, Air Valves & Parts, Suspension, Dump Valves
B2400-B84 AIRman Dump Valve 1/4 NPT
*FREE UPS Ground
on orders of $99 or more!USA!
Heavy Truck, Air Supply, Dump Valves, Pilot Valves, Quick Release, Lift Axle, Air Controls, Air Valves & Parts, Suspension, Dump ValvesB2400-B84 AIRman Dump Valve 1/4 NPT
This valve is used to dump (exhaust) the air on air ride suspensions and other applications.
Specs:
- Ports:
- 1/4″ NPT Delivery and Exhaust
- 1/8” NPT Pilot Signal
- Made in the USA!
Cross-Reference:
- Hendrickson B-38689
- Hendrickson S-23588
- Neway 90554615, 90054079
- more below…
SKU: AP-B2400-B84 - Ports:
-
Air Controls, Heavy Truck, Lift Axle, Panel Mounting Brackets
R-005771 Hendrickson Inside Single L Bracket Kit
*FREE UPS Ground
on orders of $99 or more!USA!
Air Controls, Heavy Truck, Lift Axle, Panel Mounting BracketsR-005771 Hendrickson Inside Single L Bracket Kit
Mount your Hendrickson lift axle panel under-dash, or side mount with this “L” mounting bracket. This is for a single panel application.
Fits:
- LC-SSI
- LC-SSI_R2
- LC-NSI
- LC-NSI_R2
SKU: HL-R-005771
