*FREE UPS Ground
on orders of $99 or more!
MADE IN USA!

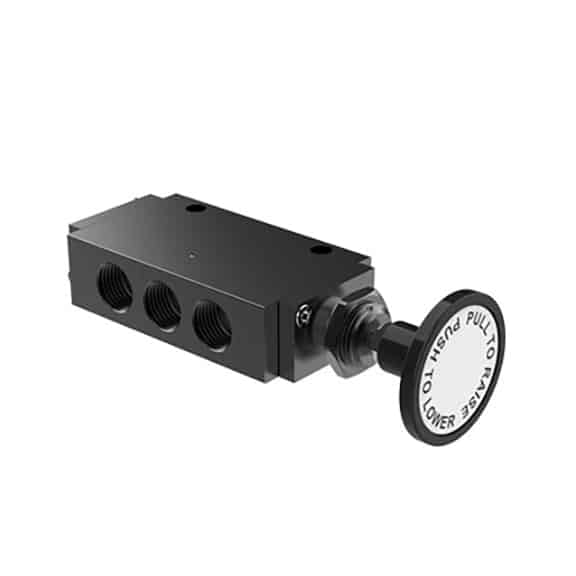

B2400-B40 AIRman 5-Port 2-Position Valve w/ Detent
7 in stock (can be backordered)
Threaded aluminum mounting boss for 3/4″ diameter through hole mounting, nut included. For 2-Way Tailgate Cylinders
Details:
- (5) 3/8″–18 FPT ports with a .85 inch hole spacing
- Detented for positive engagement
- (2) 9/32″ dia. body mounting holes
- Replaces Alkon TD6300, Buyers Products AK12392MR, 170.V24204
$85.22 Each
7 in stock (can be backordered)
B2400-B40 AIRman 5-Port 2-Position Valve w/ Detent
B2400-B40 AIRman 5-Port 2-Position Valve w/ Detent

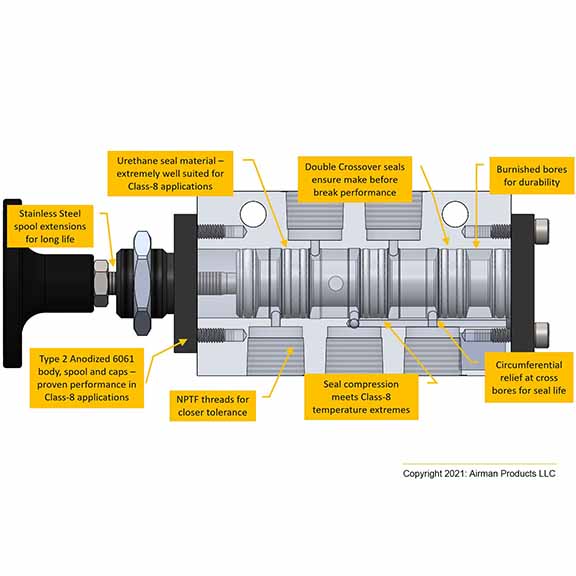

Threaded aluminum mounting boss for 3/4″ diameter through hole mounting — nut included. Aluminum shaft with stainless steel extension and delrin detent ring provides easy identification of valve position and long cycle life — tested to over FIVE MILLION cycles .
Details:
- (5) 3/8″–18 FPT ports with a .85 inch hole spacing
- Detented for positive engagement
- (2) 9/32″ dia. body mounting holes
- Replaces Alkon TD6300, Buyers Products AK12392MR, 170.V24204
Application:
- Three position valve operates any double acting air cylinder.
Drawing and Spec Sheet:
Brand
AIRman Products
Based on 0 reviews
Be the first to review “B2400-B40 AIRman 5-Port 2-Position Valve w/ Detent”
Related products
-
Air Controls, Air Supply, Air Valves & Parts, Heavy Truck, Lift Axle, Push-Pull
TD-6300 Alkon 5-Port 2-Position Valve w/ Detent
*FREE UPS Ground
on orders of $99 or more!MADE IN USA!
Air Controls, Air Supply, Air Valves & Parts, Heavy Truck, Lift Axle, Push-PullTD-6300 Alkon 5-Port 2-Position Valve w/ Detent
TD6300 has a threaded aluminum mounting boss for 3/4″ diameter through hole mounting, nut included. For 2-Way Tailgate Cylinders.
Details:
- (5) 3/8″–18 FPT ports with
- 1.13 inch spacing on 2 port side
- 1.20 inch spacing on 3 port side
- Detented for positive engagement
- (2) 9/32″ dia. body mounting holes
- Includes “Pull to Raise-Lower” amd “Pull to Open-Close” handle labels
- Replaces AIRman B2400-B40, Buyers Products AK12392MR, 170.V24204
SKU: AP-TD-6300 - (5) 3/8″–18 FPT ports with
-
Air Controls, Air Supply, Air Valves & Parts, Heavy Truck, Lift Axle, Push-Pull
320175 (320121) Velvac 5 Port 2 Position Valve
Sale!
*FREE UPS Ground
on orders of $99 or more!Air Controls, Air Supply, Air Valves & Parts, Heavy Truck, Lift Axle, Push-Pull320175 (320121) Velvac 5 Port 2 Position Valve
320175 (320121) Velvac 5 Port 2 Position Valve
Details:
- Part number 320121, and part number 320107 supersedes to 320175.
You will recieve part number 320175. - 1 inch mounting hole.
- 5) 1/4″–18 FPT ports
- (3) 9/32″ dia. body mounting holes
SKU: VV-320175 - Part number 320121, and part number 320107 supersedes to 320175.
There are no reviews yet.
