10036549 ConMet Oil Locking Spindle Nut-Steer-(Keyway)FF

Availability:

5 in stock


Fits steering axles with a Keyway nut/washer combination, socket size 2”, axle thread 1.50”-18.

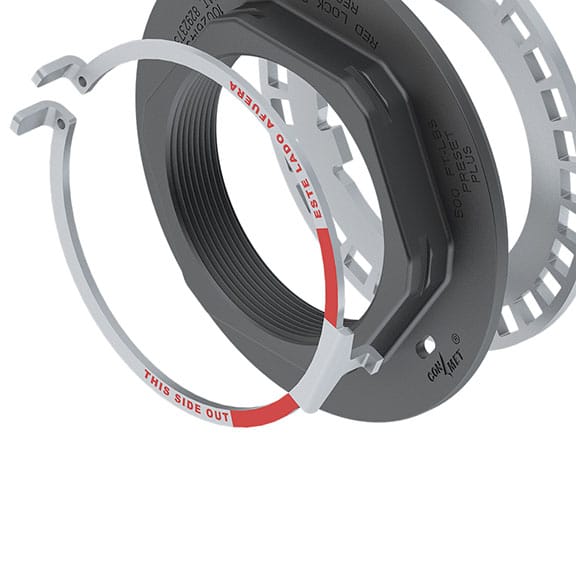

  • Includes Spiral Snap Ring, Lock Ring, Nut, Lock Washer, and Installation Instructions

$38.53 Each

5 in stock

Estimate Shipping

Compare

10036549 ConMet Oil Locking Spindle Nut-Steer-(Keyway)FF

10036549 ConMet Oil Locking Spindle Nut-Steer-(Keyway)FF

Fits steering axles with a Keyway nut/washer combination, socket size 6pt, 2”, axle thread 1.50”-18.

  • Includes Spiral Snap Ring, Lock Ring, Nut, Lock Washer, and Installation Instructions

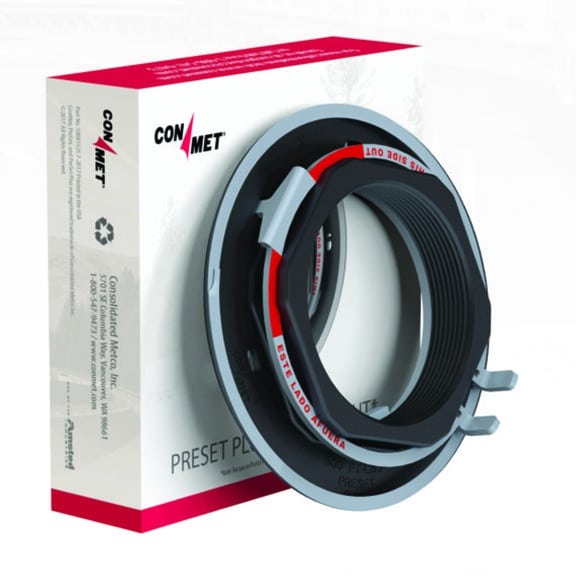

TN Spindle Nut

  • Designed specifically for PreSet Plus® Hub Assemblies, our new spindle nuts ease hub installation and improve clamp load retention.

Taking Spindle Nuts to the Next Level

  • ConMet is known throughout the transportation industry for innovating superior wheel-end solutions. We’ve developed technologies to aid hub installation, ensure proper alignment, and reduce damage to components during assembly, and now we’ve developed our own Spindle Nuts for use with PreSet Plus® hubs.

Installation is a Snap

  • PreSet Plus® Spindle Nuts make installation faster and easier, and aid the removal of the complete assembly for servicing. They have improved safety features and require no adjustment to engage the locking ring. Our Spindle Nuts save you time during hub installation, making sure everything is aligned properly before your vehicle hits the road.

Superior Clamp Load Retention

  • Our spindle nuts are designed with optimized contact area to improve clamp load retention. They retain clamp load on the bearings, which in turn hold the hub in place. Once the locking ring is in place, it cannot loosen. And what’s more? ConMet Spindle Nuts lock in any position giving you the perfect fit – every time.

ConMet-Wheel-Seal-Cross-Reference

ConMet-Wheel-Bearing-Cross-Reference

SKU: CO-10036549 Categories: ,
Weight 2 lbs
Axle Thread Size

Bill of Materials 10036549 PreSet Plus Spindle Nut Kit (Keyway)
Item Description Material Qty Unit Type
10041406 HUB SERVICE MANUAL OIL LUBRICATION 1 EA Documentation
10026174 SNAP RING RETAINER STEEL 1 EA Spindle Nut Lock Ring
10031178 SNAP RING – DOUBLE WIND STEEL 1 EA Spindle Nut Helical Ring
10026172 SPINDLE NUT 1.50 X 18 UNEF STEEL 1 EA Spindle Nut
10026173 SPINDLE NUT KEYWAY WASHER STEEL 1 EA Spindle Washer



AXLE POSITION FRONT
AXLE FF
PRODUCT TYPE PRESET PLUS SPINDLE NUT KIT
SIX-POINT SOCKET SIZE (IN.) 2
TORQUE SPEC (FT-LBS) 300, DO NOT BACK OFF SPINDLE NUT
NOTE: KEYWAY TYPE COMMONLY USED ON DANA AXLES

Brand

ConMet

Dsuban Spring is a proud distributor of ConMet products. When it comes to wheel end performance, ConMet is the best value for cost per mile and the safest product choices for customers in the commercial vehicle industry. For help in determining your part number, this link to the ConMet App will help.
