10082201 ConMet PreSet Steer Hub Assembly - Hub Pilot-10 Stud-ABS

*FREE UPS Ground
on orders of $99 or more!

,

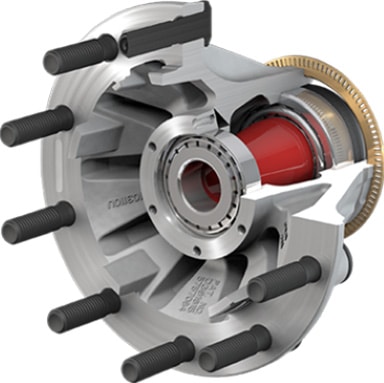

10082201 ConMet PreSet Steer Hub Assembly – Hub Pilot-10 Stud-ABS

Availability:

Out of stock
Compare

Aftermarket PreSet hubs, with pre-adjusted bearings, are shipped assembled and ready for installation. Look at specifications tab for details.

Aluminum Steer Hub for aluminum wheel application, 5.44 offset. Can be used in an application which calls for a 10082200 for steel wheels (will have a longer stud 2.91in instead of 2.47in).

  • ALUMINUM PRESET FF FRONT
  • 13.2K GAWR
  • 6600 lb Hub Load Rating
  • Casting Number 10026176, 103110

Crossovers

  • 85150197
  • 21356144
  • 85150197

Need help? Use the ConMet Hub Cross Reference and Part Identifier.

$346.79 Each

Out of stock

Compare
ConMet

10082201 ConMet PreSet Steer Hub Assembly – Hub Pilot-10 Stud-ABS

10082201 ConMet PreSet Steer Hub Assembly – Hub Pilot-10 Stud-ABS

The most advanced wheel ends on the market, featuring ConMet wheel seals and bearings.

By replacing your wheel ends with genuine PreSet hubs, you get the following benefits:

  • Minimize downtime
  • Bring down labor costs
  • Diminish potential for errors during reassembly and installation
  • Reduce liability Complete warranty on all components

Ever since ConMet’s PreSet hub assembly was introduced in 1995, truck OEM’s have experienced the ease of its installation process. There’s no need for assembly or bearing adjustment, the PreSet assembly just slides right onto the spindle.

Why shouldn’t technicians in the aftermarket experience the same benefits?

Rebuilding or servicing hubs comes with risks. Servicing a hub oftentimes requires rebuilding the hub by replacing bearing cups and cones, the wheel seal, and manually-adjusting the bearings. Improperly servicing a hub can create a variety of wheel end problems, which could include a wheel off situation, leading to the possibility of serious injury and up to hundreds of thousands of dollars in fines or damages.

Given the risks of rebuilding hubs, what are the benefits of replacing them with ConMet’s PreSet Aftermarket hubs?

  • Besides keeping the truck OEM genuine like it came from the factory, PreSet replacement hubs come with a three-year limited warranty (go to the ConMet website for details).
  • PreSet hubs are available when you need them since they are stocked in distribution centers.
  • A technician can rebuild a hub in about three hours. On the other hand, that same technician can replace a hub in as little as one hour. This can free up service bays for other service opportunities.
  • Most importantly, replacing hubs gives you peace of mind knowing you did your best to provide protection against potential liability issues.
ConMet Cross References / Brochures

5 years/500,000 mile ConMet manufacturer’s warranty (go to the ConMet website for details) when installed with PreSet Plus Spindle Nut: 10036548 (D Flat),10036549 (Keyway) (PreSet Hubs Only)

SKU: CO-10082201 Categories: , Tags: , , , , , ,
Weight 40 lbs
ALUMINUM PRESET FF FRONT
10082201

PRODUCT SPECS

MATERIAL ALUMINUM
AXLE POSITION FRONT
AXLE FF
ASSEMBLY TYPE PRESET
BEARING SET (INBOARD) SET :427 CUP :HM212011PS (PRESET)
BEARING SET (OUTBOARD) SET :428 CUP :3720 PS (PRESET)
COMPATIBLE BRAKE TYPE DRUM
HUB MOUNTING SYSTEM HP10
WHEEL STUD STANDOUT (IN.) 2.92
WHEEL MATERIAL ALUMINUM WHEELS
FLANGE OFFSET (IN.) 5.44
BARREL LENGTH —
WEIGHT (LBS.) 37.8
CONVENTIONAL HUB OPTION 10083781
PRESET / PRESET PLUS HUB REBUILD KIT 10081727
INNER BEARING 10041905
OUTER BEARING 10041906
SEAL & SPACER 10081518

Wheel Stud Number 102188

This hub can be used in an application which calls for a 10082200 for steel wheels (will have a longer stud 2.91in instead of 2.47in).

ConMet Same As Numbers;

10016514
10016522
10016526
10016528
10016536
10030862
10032960
10032962
10032974
10036778
10036779
10045131
10045140
10080298
10080361
10080385
10080393
10080977

Con Met 10082201 Hub Assembly

  • Volvo part number 85150197
  • Replaces Volvo 20964256, 21628398, 22374418, 22374434, 85137081
  • Front Axle, FF
  • Axle-Specific Specification 5.44″ Turbo
  • Hub Piloted – 10 Studs
  • ABS: Yes, Has Stamped ABS Ring
  • Wheel Stud Bolt Circle Diameter 285.75 mm
  • Wheel Stud 102188
  • Wheel Stud Standout 2.92″
  • Hub Rating 6,600 LBS 2,994 kg
  • Hub Cap Bolt Circle Diameter 4.500″
  • Drum Pilot Diameter 8.78″
  • Bearing Set ½-stand
  • ABS Offset 1.53″
  • Hub Offset 5.44″
  • Machining 10016500
  • Machined Flange Thickness 1.17″
  • Casting 103110
  • Casting Material A356.0-T61 Aluminum
  • 10003911 SEAL (PRESET) SKF 35058
  • 103592 BEARING SPACER STEEL
  • 103594 CONE, BEARING – OUTBOARD 1/2-STAND; STEEL
  • 103596 CONE, BEARING – INBOARD 1/2-STAND; STEEL
  • 10009780 RING, ABS STEEL, 100 TOOTH
  • 102188 STUD, WHEEL – PROP CL 10.9 M22 X 1.5MM X 4.09 LG
  • 103595 CUP, BEARING – OUTBOARD 1/2-STAND; STEEL
  • 103597 CUP, BEARING – INBOARD 1/2-STAND; STEEL

Brand

ConMet

Dsuban Spring is a proud distributor of ConMet products. When it comes to wheel end performance, ConMet is the best value for cost per mile and the safest product choices for customers in the commercial vehicle industry. For help in determining your part number, this link to the ConMet App will help.
