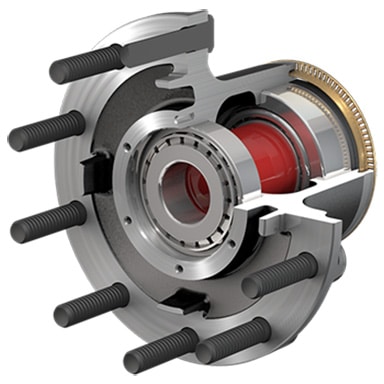

10082215 ConMet PreSet Steer Hub Assembly – Hub Pilot-10 Stud-ABS

10082215 ConMet PreSet Steer Hub Assembly – Hub Pilot-10 Stud-ABS

10082215 ConMet PreSet Steer Hub Assembly – Hub Pilot-10 Stud-ABS

The most advanced wheel ends on the market, featuring ConMet wheel seals and bearings.

By replacing your wheel ends with genuine PreSet hubs, you get the following benefits:

• Minimize downtime
• Bring down labor costs
• Diminish potential for errors during reassembly and installation
• Reduce liability Complete warranty on all components

Ever since ConMet’s PreSet hub assembly was introduced in 1995, truck OEM’s have experienced the ease of its installation process. There’s no need for assembly or bearing adjustment, the PreSet assembly just slides right onto the spindle.

Why shouldn’t technicians in the aftermarket experience the same benefits?

Rebuilding or servicing hubs comes with risks. Servicing a hub oftentimes requires rebuilding the hub by replacing bearing cups and cones, the wheel seal, and manually-adjusting the bearings. Improperly servicing a hub can create a variety of wheel end problems, which could include a wheel off situation, leading to the possibility of serious injury and up to hundreds of thousands of dollars in fines or damages.

Given the risks of rebuilding hubs, what are the benefits of replacing them with ConMet’s PreSet Aftermarket hubs?

• Besides keeping the truck OEM genuine like it came from the factory, PreSet replacement hubs come with a three-year limited warranty (go to the ConMet website for details).
• PreSet hubs are available when you need them since they are stocked in distribution centers.
• A technician can rebuild a hub in about three hours. On the other hand, that same technician can replace a hub in as little as one hour. This can free up service bays for other service opportunities.
• Most importantly, replacing hubs gives you peace of mind knowing you did your best to provide protection against potential liability issues.

• ConMet Hub Cross Reference and Part Identifier
• Seal Crossover
• Bearing Crossover
• PreSet Hub Brochure.
• Hub Components Brochure.

5 years/500,000 mile ConMet manufacturer’s warranty (go to the ConMet website for details) when installed with PreSet Plus Spindle Nut: 10036548 (D Flat),10036549 (Keyway) (PreSet Hubs Only)
