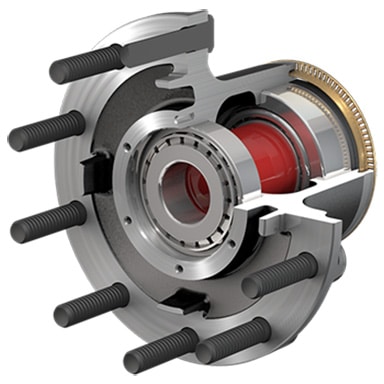

10082215 ConMet PreSet Steer Hub Assembly – Hub Pilot-10 Stud-ABS

Availability:

2 in stock


Aftermarket PreSet hubs, with pre-adjusted bearings, are shipped assembled and ready for installation. Look at specifications tab for details.

This item is a Iron PreSet Steer Hub for aluminum wheel application, FL Series with 4.29 offset.

  • IRON PRESET FL FRONT
  • 23K GAWR
  • 11500 lb Hub Load Rating

Need help? Use the ConMet Hub Cross Reference and Part Identifier.

$452.68 Each

2 in stock

Estimate Shipping

Compare

10082215 ConMet PreSet Steer Hub Assembly – Hub Pilot-10 Stud-ABS

10082215 ConMet PreSet Steer Hub Assembly – Hub Pilot-10 Stud-ABS

The most advanced wheel ends on the market, featuring ConMet wheel seals and bearings.

By replacing your wheel ends with genuine PreSet hubs, you get the following benefits:

  • Minimize downtime
  • Bring down labor costs
  • Diminish potential for errors during reassembly and installation
  • Reduce liability Complete warranty on all components

Ever since ConMet’s PreSet hub assembly was introduced in 1995, truck OEM’s have experienced the ease of its installation process. There’s no need for assembly or bearing adjustment, the PreSet assembly just slides right onto the spindle.

Why shouldn’t technicians in the aftermarket experience the same benefits?

Rebuilding or servicing hubs comes with risks. Servicing a hub oftentimes requires rebuilding the hub by replacing bearing cups and cones, the wheel seal, and manually-adjusting the bearings. Improperly servicing a hub can create a variety of wheel end problems, which could include a wheel off situation, leading to the possibility of serious injury and up to hundreds of thousands of dollars in fines or damages.

Given the risks of rebuilding hubs, what are the benefits of replacing them with ConMet’s PreSet Aftermarket hubs?

  • Besides keeping the truck OEM genuine like it came from the factory, PreSet replacement hubs come with a three-year limited warranty (go to the ConMet website for details).
  • PreSet hubs are available when you need them since they are stocked in distribution centers.
  • A technician can rebuild a hub in about three hours. On the other hand, that same technician can replace a hub in as little as one hour. This can free up service bays for other service opportunities.
  • Most importantly, replacing hubs gives you peace of mind knowing you did your best to provide protection against potential liability issues.
ConMet Cross References / Brochures

5 years/500,000 mile ConMet manufacturer’s warranty (go to the ConMet website for details) when installed with PreSet Plus Spindle Nut: 10036548 (D Flat),10036549 (Keyway) (PreSet Hubs Only)

SKU: CO-10082215 Categories: , Tags: ,
Weight 77 lbs
ALUMINUM PRESET FL FRONT
10082215

PRODUCT SPECS

MATERIAL IRON
AXLE POSITION FRONT
AXLE FL
ASSEMBLY TYPE PRESET
BEARING SET (INBOARD) SET :445 CUP :6420 PS(PRESET)
BEARING SET (OUTBOARD) SET :446 CUP :552A PS(PRESET)
COMPATIBLE BRAKE TYPE DRUM
HUB MOUNTING SYSTEM HP10
WHEEL STUD STANDOUT (IN.) 3.30
WHEEL MATERIAL ALUMINUM WHEELS
FLANGE OFFSET (IN.) 4.29
BRAKE DRUM PILOT (IN.) 8.78
BARREL LENGTH
ABS TONE RING INCLUDED YES
WEIGHT (LBS.) 76.8
CONVENTIONAL HUB OPTION 10083793
PRESET / PRESET PLUS HUB REBUILD KIT 10081728
INNER BEARING 10041925
OUTER BEARING10041926
SEAL & SPACER  10081519



ConMet Same As Numbers;

10014453
10014455
10014457
10014459
10014461
10033320
10033323
10034307
10036532
10036698
10037979
10037981
10038056
10041810
10041813
10081313

Brand

ConMet

Dsuban Spring is a proud distributor of ConMet products. When it comes to wheel end performance, ConMet is the best value for cost per mile and the safest product choices for customers in the commercial vehicle industry. For help in determining your part number, this link to the ConMet App will help.
