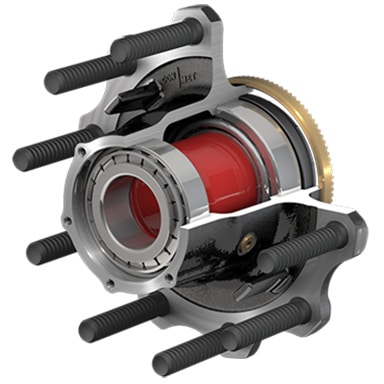

10082227 ConMet PreSet Trailer Hub Assembly – HP-10 Stud-ABS

Availability:

4 in stock


Aftermarket PreSet hubs, with pre-adjusted bearings, are shipped assembled and ready for installation. Look at specifications tab for details.

Cast Iron Hub TN Tapered Spindle for aluminum wheel application, .28 offset.

  • ALUMINUM PRESET TN TRAILER
  • 23K GAWR
  • 11500 lb Hub Load Rating

Need help? Use the ConMet Hub Cross Reference and Part Identifier.

$291.06 Each

4 in stock

Estimate Shipping

Compare

10082227 ConMet PreSet Trailer Hub Assembly – HP-10 Stud-ABS

10082227 ConMet PreSet Trailer Hub Assembly – HP-10 Stud-ABS

The most advanced wheel ends on the market, featuring ConMet wheel seals and bearings.

By replacing your wheel ends with genuine PreSet hubs, you get the following benefits:

  • Minimize downtime
  • Bring down labor costs
  • Diminish potential for errors during reassembly and installation
  • Reduce liability Complete warranty on all components

Ever since ConMet’s PreSet hub assembly was introduced in 1995, truck OEM’s have experienced the ease of its installation process. There’s no need for assembly or bearing adjustment, the PreSet assembly just slides right onto the spindle.

Why shouldn’t technicians in the aftermarket experience the same benefits?

Rebuilding or servicing hubs comes with risks. Servicing a hub oftentimes requires rebuilding the hub by replacing bearing cups and cones, the wheel seal, and manually-adjusting the bearings. Improperly servicing a hub can create a variety of wheel end problems, which could include a wheel off situation, leading to the possibility of serious injury and up to hundreds of thousands of dollars in fines or damages.

Given the risks of rebuilding hubs, what are the benefits of replacing them with ConMet’s PreSet Aftermarket hubs?

  • Besides keeping the truck OEM genuine like it came from the factory, PreSet replacement hubs come with a three-year limited warranty (go to the ConMet website for details).
  • PreSet hubs are available when you need them since they are stocked in distribution centers.
  • A technician can rebuild a hub in about three hours. On the other hand, that same technician can replace a hub in as little as one hour. This can free up service bays for other service opportunities.
  • Most importantly, replacing hubs gives you peace of mind knowing you did your best to provide protection against potential liability issues.
ConMet Cross References / Brochures

5 years/500,000 mile ConMet manufacturer’s warranty (go to the ConMet website for details) when installed with PreSet Plus Spindle Nut: 10036552 ( PreSet Hubs Only)

SKU: CO-10082227 Categories: , Tag:
Weight 55 lbs
IRON PRESET TN TRAILER
10082227

PRODUCT SPECS

MATERIAL IRON
AXLE POSITION TRAILER
AXLE TN – TAPERED SPINDLE
ASSEMBLY TYPE PRESET
BEARING SET (INBOARD) SET :414 OR 431 CUP :HM218210 (PRESET)
BEARING SET (OUTBOARD) SET :413 OR 427 CUP :HM212011 (PRESET)
COMPATIBLE BRAKE TYPE DRUM
HUB MOUNTING SYSTEM HP10
WHEEL STUD STANDOUT (IN.) 4.08
WHEEL MATERIAL ALUMINUM WHEELS
FLANGE OFFSET (IN.) 0.28
BARREL LENGTH
WEIGHT (LBS.) 53.9
PRESET / PRESET PLUS HUB REBUILD KIT 10081730
INNER BEARING 10041935
OUTER BEARING 10041905
SEAL & SPACER 10081521

Wheel Stud Number 10001400

ConMet Same As Numbers;

1B081009
10025868
10025870
10025878
10030804
10030806
10033297
10033299
10033376
10081009
10026183
10026185

Brand

ConMet

Dsuban Spring is a proud distributor of ConMet products. When it comes to wheel end performance, ConMet is the best value for cost per mile and the safest product choices for customers in the commercial vehicle industry. For help in determining your part number, this link to the ConMet App will help.
