10082256 ConMet Trailer Hub Assembly - HP-10 Stud-ABS

*FREE UPS Ground
on orders of $99 or more!

,

10082256 ConMet Trailer Hub Assembly – HP-10 Stud-ABS

Availability:

1 in stock
Compare

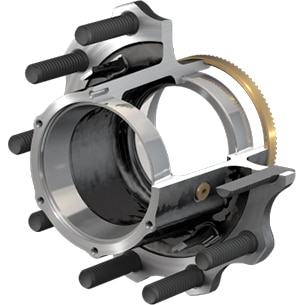

This hub is  a ConMet Conventional Trailer Hub Assembly that is a Non-PreSet, manual adjust design. Does not include bearings or seals. Look at specifications tab for details.

Cast Iron Hub TP Parallel Spindle for aluminum wheel application, 1.35 offset.

  • IRON CONVENTIONAL TP TRAILER
  • 25K GAWR
  • 12500 lb Hub Load Rating

Need help? Use the ConMet Hub Cross Reference and Part Identifier.

$202.26 Each

1 in stock

Estimate Shipping

Compare
ConMet

10082256 ConMet Trailer Hub Assembly – HP-10 Stud-ABS

10082256 ConMet Trailer Hub Assembly – HP-10 Stud-ABS

Conventional hubs are available in TP and TN axle configurations and include bearing cups, wheel studs, and an ABS ring installed at the factory. This hub is  a ConMet Conventional Trailer Hub Assembly that is a Non-PreSet, manual adjust design. Does not include bearings or seals.



ConMet Cross References / Brochures



SKU: CO-10082256 Categories: , Tag:
Weight 52 lbs
IRON CONVENTIONAL TP TRAILER
10082256

PRODUCT SPECS

MATERIAL IRON
AXLE POSITION TRAILER
AXLE TP – PARALLEL SPINDLE
ASSEMBLY TYPE CONVENTIONAL
BEARING CUP (INBOARD) CUP :HM518410
BEARING CUP (OUTBOARD) CUP :HM518410
COMPATIBLE BRAKE TYPE DRUM
HUB MOUNTING SYSTEM HP10
WHEEL STUD STANDOUT (IN.) 4.08
WHEEL MATERIAL ALUMINUM WHEELS
FLANGE OFFSET (IN.) 1.35
BARREL LENGTH —
WEIGHT (LBS.) 50.5

Wheel Stud Number 10001400

ConMet Same As Numbers;

1B026199
10026199

Brand

ConMet

Dsuban Spring is a proud distributor of ConMet products. When it comes to wheel end performance, ConMet is the best value for cost per mile and the safest product choices for customers in the commercial vehicle industry. For help in determining your part number, this link to the ConMet App will help.
