8800SKL Kit Masters RA Kysor-Style Seal & Lining Kit (K-26 thru K-32)

The Kit Masters 8800SKL RA Kysor-Style Seal & Lining Kit is a heavy-duty rebuild kit designed to renew internal wear parts for rear air (RA) K-26, K-30, and K-32 Kysor-style fan clutches.

Core Specifications:

• Brand: Kit Masters
• Part Number / SKU: 8800SKL
• Design Style: Rear Air (RA)
• Kysor StyleCompatible Fan Clutch Series: K-26, K-30, and K-32
• Country of Origin: United States

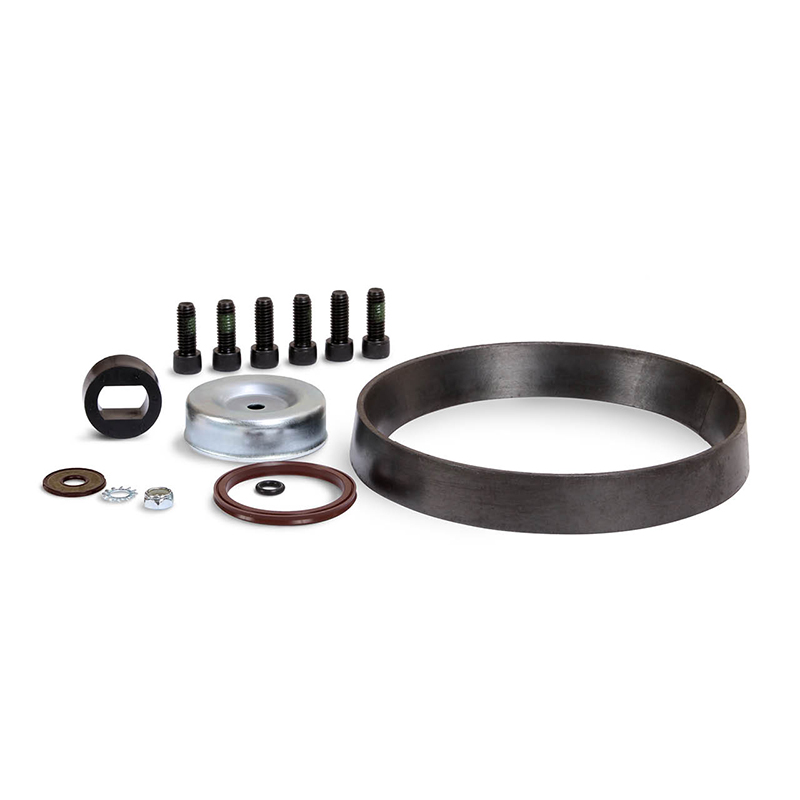

Kit Contents:

• Lining Components: 1 Premium Friction Lining 1 Lining Retaining Plate, and 6 Lining Screws
• Seals & O-Rings: 1 U-Cup Combo Seal (featuring Kit Masters’ patented Auto Lock design), 1 Seal Washer, and 2 specialized O-Rings
• Hardware: 1 Cylinder Cap, 1 Coupler, 1 Star Washer, 1 Housing, and 1 5/16″ Lock Nut

Torque Specifications:

• 5/16” Cylinder Cap Locknut: 84 lbs-in (9.5 N·m)
• Lining Screws (x6): 30 lbs-in (3.4 N·m)

OEM & Aftermarket Cross-References:

• This kit directly replaces the following industry part numbers:
  • Kysor / BorgWarner: 1033-09339-01, 10330933901, 1033-40600-02, 10334060002, 9908405, 9908408
  • International / Navistar: 2509688C91
  • Mack / Volvo: 85112571, 85134490
  • Alliance: ABPN208800SKL

Rebuild Precautions:

• When using this kit, note that Kit Masters Installation Guidelines strongly warn that you must replace the hub (pulley) bearings at the same time. Failing to replace the bearings during the clutch rebuild completely voids the warranty on the new kit.

Download Instructions:

• 8800SKL-Instructions
