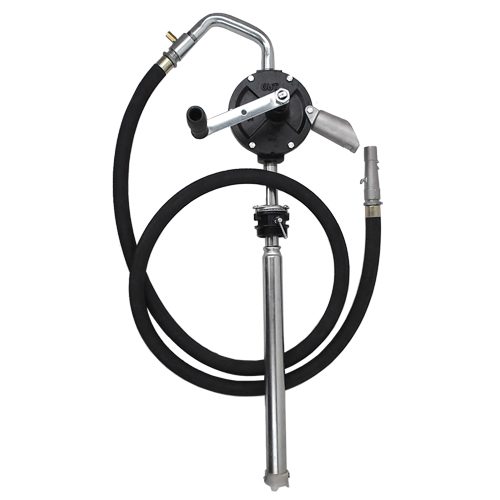

American Forge 8210 Rotary Fuel Pump Fm

Item Drop ships from manufacturer. Ships by UPS: YES

$404.80 Each

Estimate Shipping


American Forge 8210 Rotary Fuel Pump Fm

American Forge 8210


For quick refueling of vehicles and equipment.
Ideal for outdoor use in extreme weather conditions.
Self priming operation with vacuum release and a flow of up to 10 gallons/min (38 liters/min).
Delivers media with a head/lift up to 20’.
Pump handle rotates a high quality sintered powder metal 3-vane rotor inside a highly finished pumping chamber.
Graphite vanes are self-lubricating and non-wearing, and graphite seals allow the pump to be used with a wide variety of fluids including diesel with up to 15% Ethanol blend.
Comes complete with 8’ anti-static hose with non-sparking nozzle, nozzle holder, 2” bung adapter, flame arrestor, and telescopic suction tube with strainer.

If you are looking for American Forge & Foundry parts, warranty or a catalog, Click Here.

SKU: AF-8210 Categories: ,
Weight 19 lbs
Inlet/outlet: 3/4” NPT
Flow: 10 gal/min (38 liters/min)
Max fluid temp: 250° F (120° C)
Max viscosity: 2000 SSU
Suction tube: 18.2” to 34.5”
Anti-static hose: 8’ x 3/4”
For use with: 15 gallon (50 liter) to 55 gallon (205 liter) drums
Wetted components: cast iron, steel, graphite, paper, polypropylene,
Uses include: gasoline, oil, diesel, bio-diesel, kerosene, Class I & II flammable liquids, Naptha, and alcohol
Do not use with: water based media


American Forge and Foundry

Established in 1963 American Forge and Foundry has built a long standing tradition of providing quality products, exceptional service, and value.

If you are looking for American Forge & Foundry parts, CLICK HERE.

2019 American Forge & Foundry Catalog.

For Viking Tools by AFF, here is the AFF 2019 Viking Tools Catalog.
