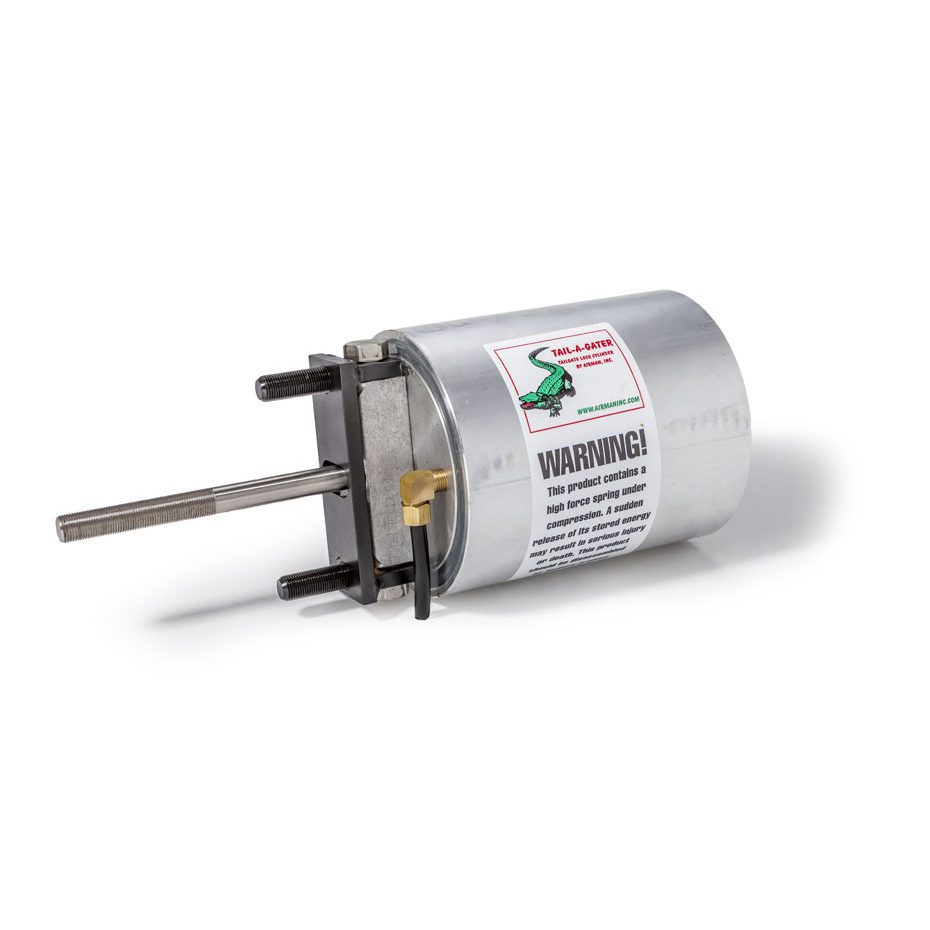

B3000-259-H-6.5 (w/6.5 inch rod) AIRman Tail-a-Gater Tailgate Cylinder is made from heavy duty aluminum thick wall tubing with pivoting trunnion flange for harsh conditions.

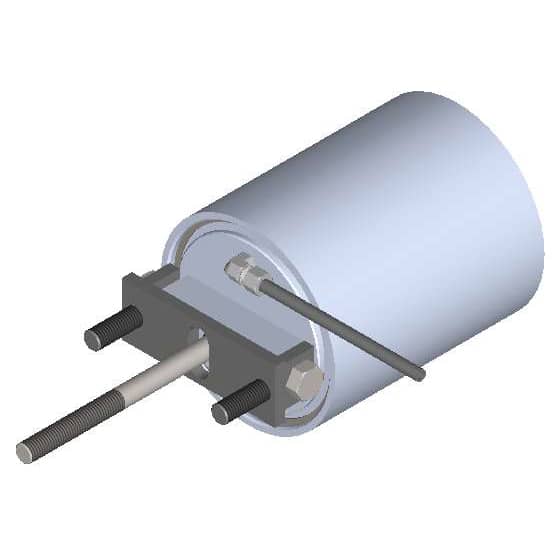

Does NOT include clevis and is exactly as pictured (rod extended). Drawing below & in Specs.
OE Numbers:
East Mfg. 510-25950-03 (cylinder only)
Velvac 100603
MAC Trailer 27080091
Specs:
Model Number: B3000-259-H6.5
Bore Size: 6.00in
Cylinder Length: 7-7/8in
Stroke: 3.00in

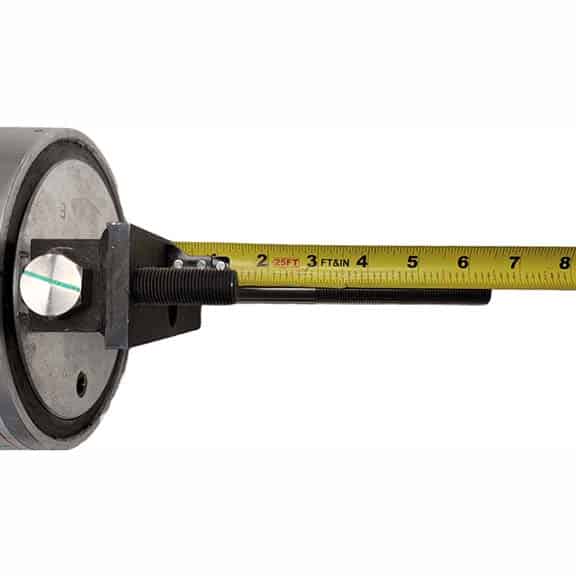

Extended Rod Length: 6.50in (Measuring from flat studded plate to end of rod)

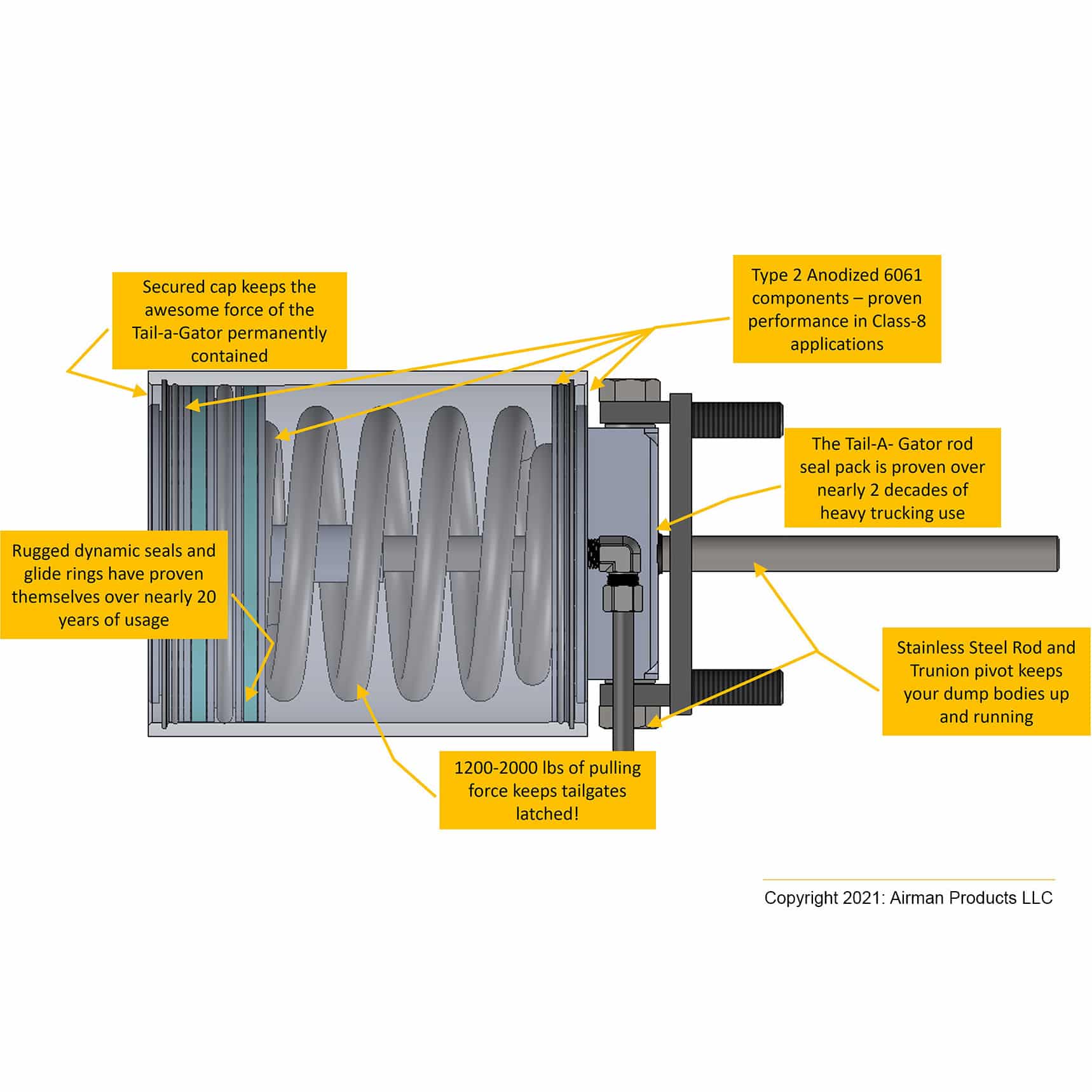

Heavy duty aluminum thick wall tubing with pivoting trunnion flange.
Six inch diameter bore and piston.
Pivoting trunnion flange mount permits the cylinder to follow the connecting mechanism through the rotational movement to prevent extraordinary side loading and wear.
Compact construction and light weight material provide resistance to the harsh environmental conditions.
Rated to 150 psi
Rated -40° to 180° F
Specs:
Model Number: B3000-259-H6.5
Bore Size: 6.00in
Cylinder Length: 7-7/8in
Stroke: 3.00in
Extended Rod Length: 6.50in (Measuring from flat studded plate to end of rod)
Rod Size: 5/8in
OE Numbers:
East Mfg. 510-25950-03 (cylinder only)
Used in 510-30805-00 kit from East Mfg.
Velvac 100603
MAC Trailer 27080091
Used in a MAC Trailer 52004142-1 Tailgate Cylinder Kit
