B3000-424 AIRman 2in Air Cylinder 3in Stroke

Availability:

4 in stock

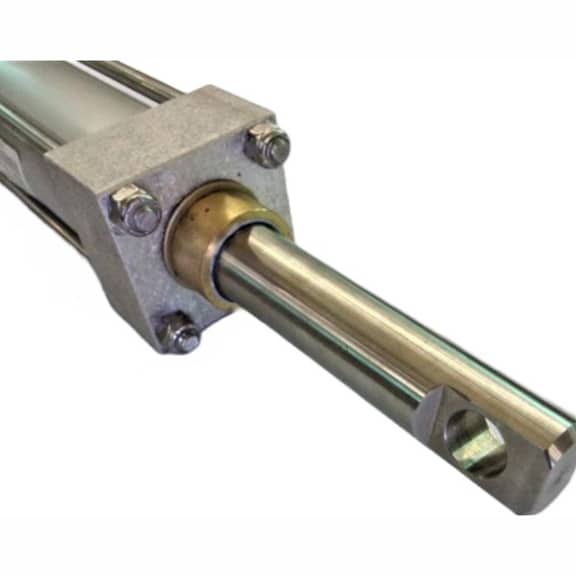

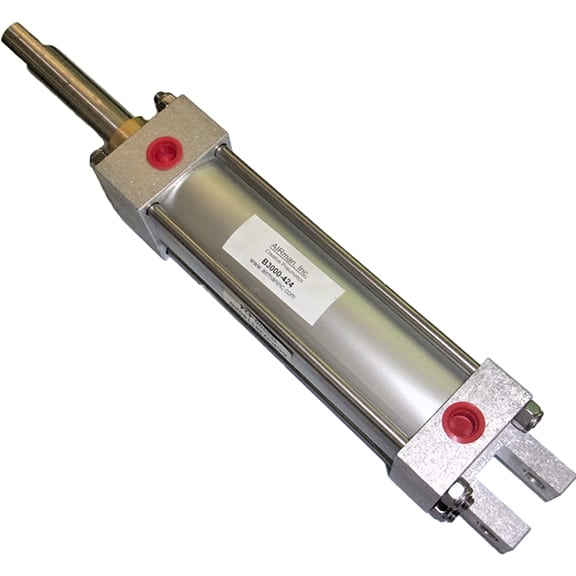

B3000-424 AIRman 2in Air Cylinder 3in Stroke

AIR CYLINDER, 2.0 X 3.0 STROKE, SPRING EXT., DOUBLE ACTING

Drawing below & in Specs.

OE Numbers:

  • AKW381140A0
  • ACKW381140A0

Specs:

  • Model Number: B3000-424
  • Bore Size: 2.00in
  • Stroke: 3.00in
  • Extended Rod Length: 15.0 in from center of clevis eye to eye
  • Collapsed Rod Length: 12.0 in from center of clevis eye to eye
  • Clevis Eye Hole Diameter: .625 in
  • Rod Diameter: 1 in

$426.92 $767.40 Each

4 in stock

Estimate Shipping

B3000-424 AIRman 2in Air Cylinder 3in Stroke

B3000-424 AIRman 2in Air Cylinder 3in Stroke

AIR CYLINDER, 2.0 X 3.0 STROKE, SPRING EXT., DOUBLE ACTING

Usually used as an tailgate cylinder.

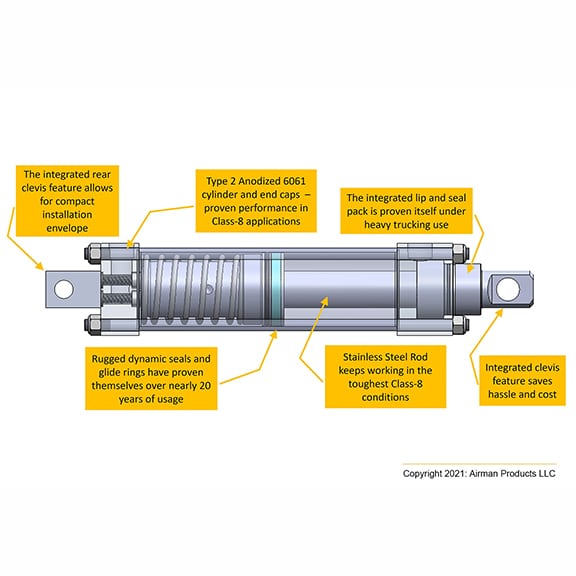

Benefits & Features:

  • Integrated front and rear clevis saves hassle and cost.
  • Has an internal spring to help stay extended when there is no air.
  • Type 2 anodized 6061 cylinder and end caps for proven performance in class 8 applications.
  • Stainless Steel rod for best corrosion resistance.
  • Rugged seals for heavy trucking use.
  • Rated to 5-150 psi
  • -40C -180C -60 hour cycle
  • Lifecycle 350k -3M+ cycles depending on the application (min 10x worst case life)
  • Temperature -40C -180C -60 hour cycle
  • Salt Spray ASTM B-117-97 -5 -10 days
  • Vibration Resonance frequency – 1 M cycles @ 5Gs
  • Vibration Step Temp and cycle sweep up to 50 Gs
  • Chemical Resistance 48 hr Methanol assembly soak followed by 300k cycle; Additional direct seal soak -1 week
  • Sludge 350k cycles impingement, water and diesel oil mix
  • Dust ISO 12013 Arizona road dust

Specs:

  • Model Number: B3000-424
  • Bore Size: 2.00in
  • Stroke: 3.00in
  • Extended Rod Length: 15.0 in from center of clevis eye to eye
  • Collapsed Rod Length: 12.0 in from center of clevis eye to eye
  • Clevis Eye Hole Diameter: .625 in
  • Rod Diameter: 1 in

OE Numbers:

  • AKW381140A0
  • ACKW381140A0

Drawing / Dimensions:

Weight 10 lbs

Drawing / Dimensions:

Brand

AIRman Products

AIRman Products is the pneumatics expert in the commercial transportation, trucking and off-highway industries for Suspension Fill, Dump Valves and many other applications.
