R-002237 Hendrickson Paralift Bushing Assy
Availability:
13 in stock (can be backordered)
R-002237 Hendrickson Paralift Bushing Assy
Replace your worn Hendrickson trailing beam bushingss. Price is for each bushing kit.
- Used in R-002006-2 and R-002006-2 Beams

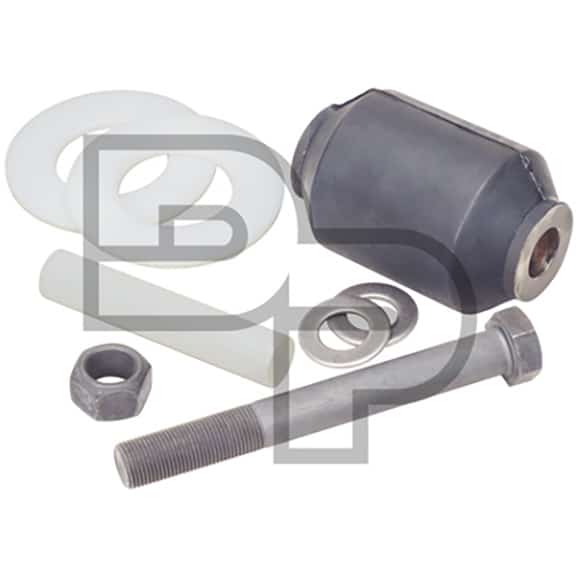

- Kit includes one bushing, delrin sleeve, bolt & locknut, and 2 washers.
- This kit has the same bushing kit used in Hendrickson total rebush kit R-009560.
- Eight of this number R-002237 equals one of a R-009560.
Kit Specs:
- (1) Bushing; 1 1/32″ID x 3 3/8″OD x 5 1/4″Lg
- (1) Lock Nut ST 7/8in GR 8
- (2) USS Iron Flat Washer 7/8in
- (1) Cap Screw 7/8in X7-1/2in GR8
- (1) Delrin Sleeve Hendrickson 1” inside x .875” inside x 5” long.
- (2) Hendrickson Paralift Wear Washer: 4.25” Outside x 2.25” Inside x .190 Thick
$84.23 Each
13 in stock (can be backordered)
R-002237 Hendrickson Paralift Bushing Assy
R-002237 Hendrickson Paralift Bushing Assy
Replace your worn Hendrickson trailing beam bushingss. Price is for each bushing kit.
- Used in R-002006-2 and R-002006-2 Beams
- Kit includes one bushing, delrin sleeve, bolt & locknut, and 2 washers.
- This kit has the same bushing kit used in Hendrickson total rebush kit R-009560.
- Eight of this number R-002237 equals one of a R-009560.
Kit Specs:
- (1) Bushing; 1 1/32″ID x 3 3/8″OD x 5 1/4″Lg
- (1) Lock Nut ST 7/8in GR 8
- (2) USS Iron Flat Washer 7/8in
- (1) Cap Screw 7/8in X7-1/2in GR8
- (1) Delrin Sleeve Hendrickson 1” inside x .875” inside x 5” long.
- (2) Hendrickson Paralift Wear Washer: 4.25” Outside x 2.25” Inside x .190 Thick
Crossovers:
- 334-1588 Dayton
- MHS446 Automann
| Weight | 7.5 lbs |
|---|
Item is usually in stock.
Application;
Fits Paralift & Paralift Ultra w/ Inboard Lift Bags. For outboard lift bags, use opposite part numbers.
Crossover;
338-1969, HTS109
Brand
Hendrickson
Dsuban Spring Service is a distributor of Hendrickson, who is a leading global manufacturer of medium and heavy-duty mechanical, elastomeric and air suspensions; integrated and non-integrated axle and brake systems; tire pressure control systems; auxiliary lift axle systems; parabolic and multi-leaf springs; stabilizers; bumpers; and components to the global commercial transportation industry.
