V251030523-BLK AIRman Valve 3 Port

V251030523-BLK AIRman Valve 3 Port

The AIRman V251030523-BLK is a heavy-duty, 3-port, 2-position pneumatically operated air pilot valve engineered specifically for commercial vehicles, lift axles, and industrial trailers. Built to withstand demanding environments, this valve effectively controls heavy air flow to critical components. Specifically, it functions as a highly reliable switch that is activated by a pilot air signal.

• High Durability: Machined from 6061 billet aircraft-aluminum for heavy-duty environments.
• Corrosion Resistance: Features a fully anodized body to withstand harsh road salt and chemicals.
• Extreme Weather Performance: Equipped with special seals rated to handle extreme cold down to -40°F.
• Washout Protection: Packed with high-viscosity silicone transport lubricant that resists moisture.

• Lift Axles: Raising and lowering auxiliary axles on heavy trucks.
• Air Tailgates: Actuating locking mechanisms and cylinders on dump trucks.
• Suspension Dump: Rapidly venting air bags on trailers and tractors.

• Port Count: 3-port design (Inlet, Outlet, Exhaust).
• Port Sizes: 1/4″ NPTF threaded ports.
• Actuation Type: Air pilot operated with a mechanical spring return.
• Body Material: Anodized aircraft-quality aluminum.

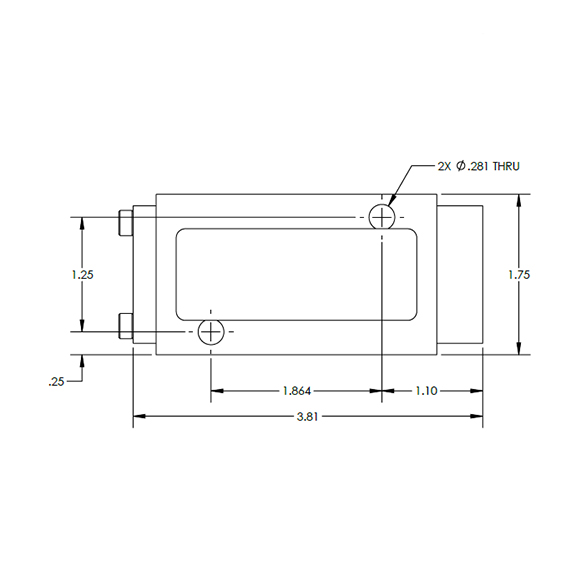

Drawing

• V251030523 CUSTOMER PRINT REV A
