Lift Axle Panel
Showing all 10 results
-
Heavy Truck, Lift Axle, Air Controls, Non Steering

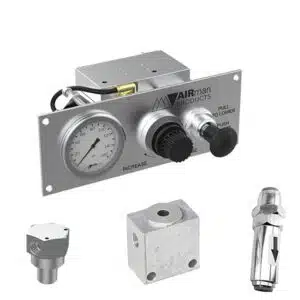

B2400-B03 AIRman Air Control Kit for Non-Steerable Lift Axle Applications (HAC-NSI)
On Sale!
*FREE UPS Ground
on orders of $99 or more!USA!
Heavy Truck, Lift Axle, Air Controls, Non SteeringB2400-B03 AIRman Air Control Kit for Non-Steerable Lift Axle Applications (HAC-NSI)
Used in Non-Steerable lift axle applications.
This air control kit is made by AIRman which directly replaces HAC-NSI, formally from Hendrickson. The face of the panel does not bear the Hendrickson name but other than that, is identical to the original HAC-NSI. This panel also replaces flip switch model R-017512-00.
The Hendrickson version of the HAC-NSI is discontinued and is replaced by LC-NSI, which requires new plumbing and the panel size is different. Contact us for ordering the LC-NSI or use LC-SSI-2.
The B2400-B03 or HAC-NSI is the same as the B2400-B04 but does not have a solenoid for auto-lift feature, therefore no wires.
- This kit is for lifting/lowering the suspension only and does not control brakes.
Quantity discounts when ordering in bulk, mix-match with B2400-B04!
SKU: AP-B2400-B03 -
Air Controls, Heavy Truck, Lift Axle, Self Steering

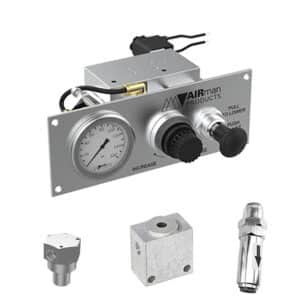

B2400-B04 AIRman Air Control Kit for Steerable Lift Axle Applications (HAC-SSI)
On Sale!
*FREE UPS Ground
on orders of $99 or more!USA!
Air Controls, Heavy Truck, Lift Axle, Self SteeringB2400-B04 AIRman Air Control Kit for Steerable Lift Axle Applications (HAC-SSI)
Used in Steerable lift axle applications.
This air control kit is made by AIRman which directly replaces HAC-SSI formally from Hendrickson. The face of the panel does not bear the Hendrickson name but other than that, is identical to the original HAC-SSI. This panel also replaces flip switch model R-017513-00.
The Hendrickson version of the HAC-SSI is discontinued and is replaced by LC-SSI, which requires new plumbing and the panel size is different. We stock it also, and you can find it HERE.
- Note: A electrical relay may be required to connect to the reverse light circuit for the “lift in reverse” feature. Download the installation instructions below for more details.
- 12vdc applied to the lift solenoid raises the axle. This would be typically connected to the reverse light circuit.
- Note that some vehicles use a negative switched reverse light circuit and would require the use of a relay to operate properly (not included).
- 12vdc applied to the lift solenoid raises the axle. This would be typically connected to the reverse light circuit.
- This kit is for lifting/lowering the suspension only and does not control brakes.
Quantity discounts when ordering in bulk, mix-match with B2400-B03!
SKU: AP-B2400-B04 - Note: A electrical relay may be required to connect to the reverse light circuit for the “lift in reverse” feature. Download the installation instructions below for more details.
-
Air Controls, Heavy Truck, Lift Axle, Non Steering, Self Steering
LC-SSI_R2 Hendrickson Air Control Kit for Steer & Non-Steer Lift Axles
On Sale!
*FREE UPS Ground
on orders of $99 or more!USA!
Air Controls, Heavy Truck, Lift Axle, Non Steering, Self SteeringLC-SSI_R2 Hendrickson Air Control Kit for Steer & Non-Steer Lift Axles
AVAILABLE NOW!
Genuine LC-SSI Hendrickson Air Control Kit replaces existing HAC-SSI and HAC-NSI auxiliary lift axle control kits with a change in air line plumbing. The panel has exactly the same measurements as the HAC series, 2-3/4 x 7-1/4 with a bolt pattern of 2.25 x 6-5/8.
- Lift in reverse application (can be used in a non-steer application by not wiring the solenoid).
- Note: A electrical relay may be required to connect to the reverse light circuit for the “lift in reverse” feature. Download the installation instructions below for more details.
- 12vdc applied to the lift solenoid raises the axle. This would be typically connected to the reverse light circuit. Axle lowers when power is removed.
- Note that some vehicles use a negative switched reverse light circuit and would require the use of a relay to operate properly (not included).
- 12vdc applied to the lift solenoid raises the axle. This would be typically connected to the reverse light circuit. Axle lowers when power is removed.
- Note: A electrical relay may be required to connect to the reverse light circuit for the “lift in reverse” feature. Download the installation instructions below for more details.
- Hendrickson Part Number B-38914-2 (LC-SSI_R2 )
- LC-SSI_R2 Supecedes LC-SSI
- This kit is for lifting/lowering the suspension only and does not control brakes.
SKU: HL-LC-SSI_R2 - Lift in reverse application (can be used in a non-steer application by not wiring the solenoid).
-
Air Controls, Heavy Truck, Lift Axle, Self Steering

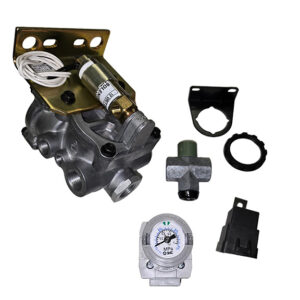

ACK250-01 Watson-Chalin HiFlow Lift Axle Control Kit
On Sale!
*FREE UPS Ground
on orders of $99 or more!Air Controls, Heavy Truck, Lift Axle, Self SteeringACK250-01 Watson-Chalin HiFlow Lift Axle Control Kit
Automatic up in reverse gear & automatic down out of reverse gear. Very easy to install. Fast lift and load. Regulator has unique built in gauge with mounting bracket.
- This kit uses an electric switch (not included) to raise and lower the suspension per the plumbing diagram below.
- This kit is for lifting/lowering the suspension only.
Features;
- Lift in reverse controlled by reverse light circuit.
- Lift/lower controlled by an electrical switch in cab (not included).
- Down/Ride bag pressure controlled by regulator which can be mounted inside or outside of cab.
SKU: WC-ACK250-01 -
Air Controls, Heavy Truck, Lift Axle, Self Steering

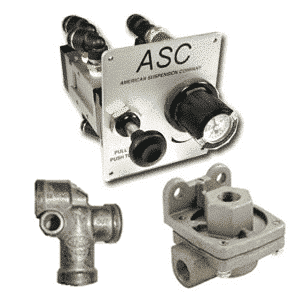

0386S ASC American Steerable Suspension Air Control Panel
*FREE UPS Ground
on orders of $99 or more!Air Controls, Heavy Truck, Lift Axle, Self Steering0386S ASC American Steerable Suspension Air Control Panel
Please choose another kit or call us for help. Product is no longer available and remains on our site for informational purposes only.
Push-Pull Valve is Obsolete with no replacement.
SKU: AS-0386S
