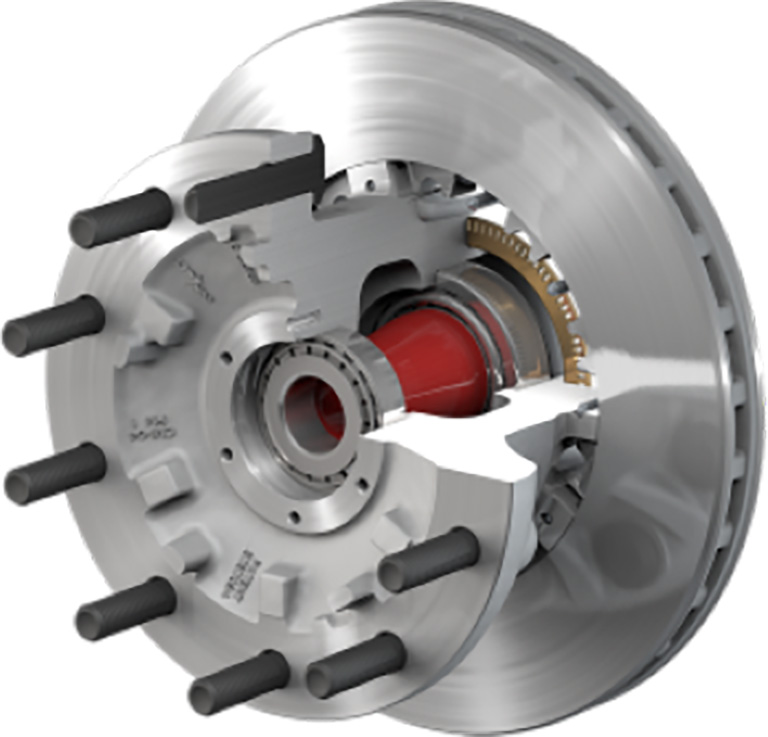

10083209 ConMet PreSet Steer Hub/Rotor Assembly FF

Availability:

2 in stock


Aftermarket PreSet hubs, with pre-adjusted bearings, are shipped assembled and ready for installation. Look at specifications tab for details.

Aluminum Steer Hub for aluminum wheel application, 5.94 offset.

  • ALUMINUM PRESET FF FRONT
  • Comes with Rotor (10025445)
  • 14.6K GAWR
  • 7350 lb Hub Load Rating
  • Casting Number 10034605

Need help? Use the ConMet Hub Cross Reference and Part Identifier.

$812.28 $870.78 Each

2 in stock

Estimate Shipping

Compare

10083209 ConMet PreSet Steer Hub/Rotor Assembly FF

10083209 ConMet PreSet Steer Hub/Rotor Assembly FF

The most advanced wheel ends on the market, featuring ConMet wheel seals and bearings.

By replacing your wheel ends with genuine PreSet hubs, you get the following benefits:

  • Minimize downtime
  • Bring down labor costs
  • Diminish potential for errors during reassembly and installation
  • Reduce liability Complete warranty on all components

Ever since ConMet’s PreSet hub assembly was introduced in 1995, truck OEM’s have experienced the ease of its installation process. There’s no need for assembly or bearing adjustment, the PreSet assembly just slides right onto the spindle.

Why shouldn’t technicians in the aftermarket experience the same benefits?

Rebuilding or servicing hubs comes with risks. Servicing a hub oftentimes requires rebuilding the hub by replacing bearing cups and cones, the wheel seal, and manually-adjusting the bearings. Improperly servicing a hub can create a variety of wheel end problems, which could include a wheel off situation, leading to the possibility of serious injury and up to hundreds of thousands of dollars in fines or damages.

Given the risks of rebuilding hubs, what are the benefits of replacing them with ConMet’s PreSet Aftermarket hubs?

  • Besides keeping the truck OEM genuine like it came from the factory, PreSet replacement hubs come with a three-year limited warranty (go to the ConMet website for details).
  • PreSet hubs are available when you need them since they are stocked in distribution centers.
  • A technician can rebuild a hub in about three hours. On the other hand, that same technician can replace a hub in as little as one hour. This can free up service bays for other service opportunities.
  • Most importantly, replacing hubs gives you peace of mind knowing you did your best to provide protection against potential liability issues.
ConMet Cross References / Brochures

5 years/500,000 mile ConMet manufacturer’s warranty (go to the ConMet website for details) when installed with PreSet Plus Spindle Nut: 10036548 (D Flat),10036549 (Keyway) (PreSet Hubs Only)

SKU: CO-10083209 Categories: , Tag:
Weight 120 lbs
ALUMINUM PRESET FF FRONT
10082209

PRODUCT SPECS

Material Aluminum
Axle Position Front
Axle FF
Assembly Type PreSet Hub & Rotor Assembly
Bearing Set (Inboard) SET: 427
CUP HM212011PS (PreSet)
Cone HM212049 PS (PreSet)
Bearing Set (Outboard) SET: 428
CUP 3720 PS (PreSet)
Cone 3782 PS (PreSet)
Compatible Brake Type Disc
Rotor Type Splined
Hub Mounting System HP10
Wheel Stud Standout (in.) 2.59
Wheel Material Aluminum Wheels
Flange Offset (in.) 5.94
Brake Drum Pilot (in.)
Barrel Length
ABS TONE RING INCLUDED YES
Weight (lbs.) 112
PreSet / PreSet Plus Hub Rebuild Kit 10081727
Inner Bearing 10041905
Outer Bearing 10041906
Seal & Spacer 10081518

Brand

ConMet

Dsuban Spring is a proud distributor of ConMet products. When it comes to wheel end performance, ConMet is the best value for cost per mile and the safest product choices for customers in the commercial vehicle industry. For help in determining your part number, this link to the ConMet App will help.
