TD-6362 Alkon 5-Port Solenoid w/Locking PP Knob

TD-6362 Alkon 5-Port Solenoid w/Locking PP Knob

TD-6362 Alkon 5-Port Solenoid w/Locking PP Knob

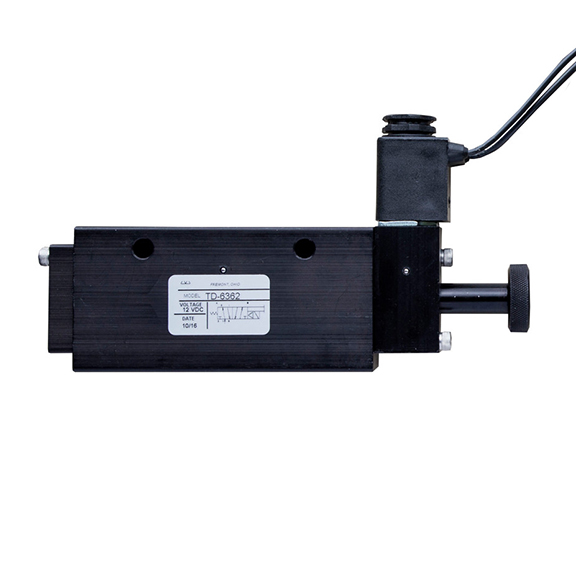

This valve made by Alkon is used in many applications like controlling air tailgate cylinders, suspension dump valves, and others.

• De-Energized State: Initially, when the operator cuts power to the valve, incoming supply air enters port #1. Simultaneously, this air flows directly out through port #2 to pressurize your primary circuit. Meanwhile, trapped air from port #4 vents freely out of exhaust port #5.
• Energized State: Conversely, the moment the system energizes the 12 Vdc solenoid, the internal airflow path shifts instantly. As a direct result of this shift, supply air from port #1 redirects to flow freely out through port #4. At the same time, the air from port #2 reverses direction and exhausts completely out of port #3.

Specs:

• Manual Lock Override
• 4-way, single solenoid, spring return
• Black anodized aluminum
• 12v DC
• 18in Leads
• Ports: 3/8″ NPT
• 150 psi max. supply
• Made in the USA!
• This valve can be used in place of a TD-4632 (1/4 NPT Ports) if you use 3/8 to 1/4 NPT Bushings.

Drawing and Spec Sheet:

• TD-6362 Spec Sheet
