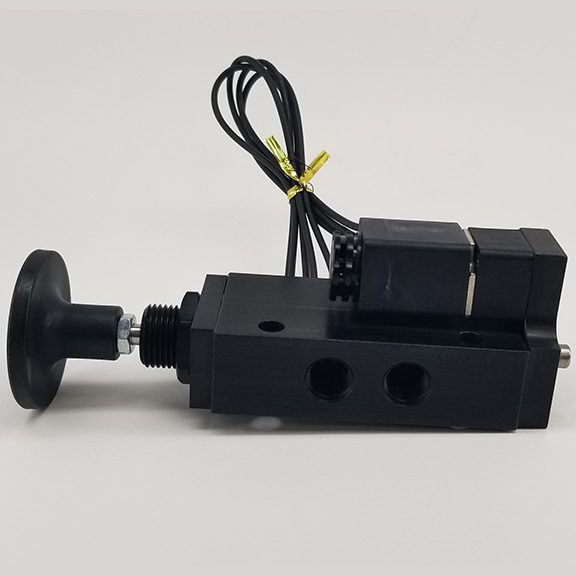

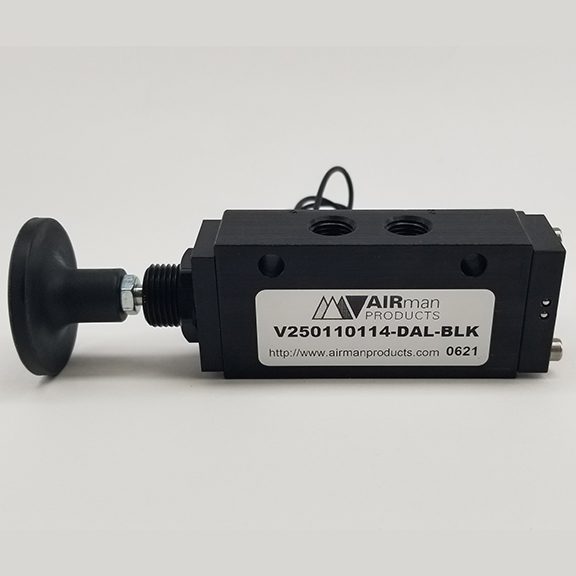

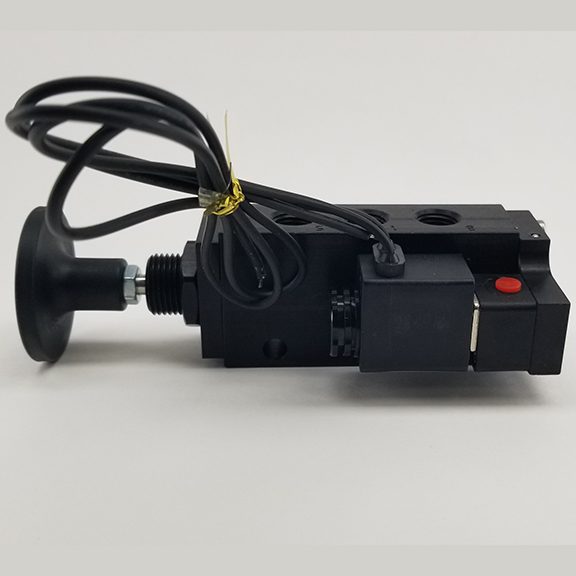

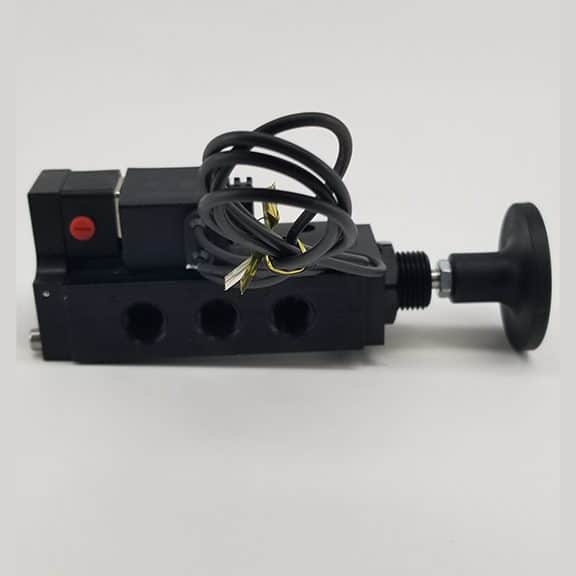

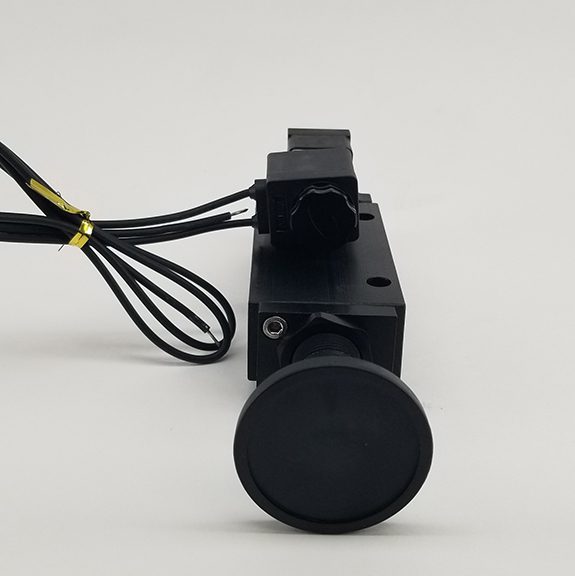

V250110114-DAL-BLK AIRman Push-Pull 5-Port Solenoid
6 in stock (can be backordered)
V250110114-DAL-BLK AIRman Push-Pull 5-Port Solenoid.
This valve has 1/4 NPT ports. Use V380110114-DAL-BLK if your valve has 3/8 NPT Ports or if you want more volume.
Details:
- Push/Pull valve with electric solenoid with manual override
- 12v DC
- 8in Leads
- Ports: 1/4″ NPT
- Replaces Watson Chalin 17523-01 or 1752301
- Made in the USA!
$137.48 Each
6 in stock (can be backordered)
V250110114-DAL-BLK AIRman Push-Pull 5-Port Solenoid
V250110114-DAL-BLK AIRman Push-Pull 5-Port Solenoid
This valve made by AIRman replaces the Watson-Chalin part number 17523-01. This 5-port valve raises and lowers your lift axle (when installed with other valves) pops-up when the reverse light circuit is energized, lifting the axle.
This valve has 1/4 NPT ports. Use V380110114-DAL-BLK if your valve has 3/8 NPT Ports or if you want more volume.
Details:
- Push/Pull valve with electric solenoid with manual override
- 12v DC
- 8in Leads
- Ports: 1/4″ NPT
- Replaces Watson Chalin 17523-01 or 1752301
- Made in the USA!

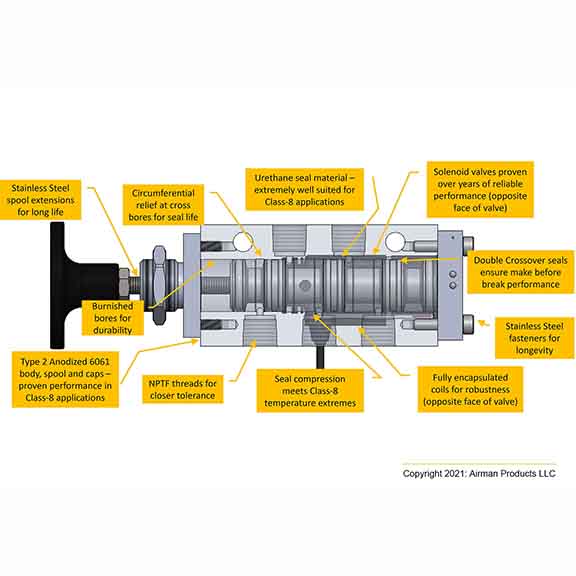

Drawing and Spec Sheet: V250110114-DAL-CUSTOMER-PRINT-2020-11-16
Brand
AIRman Products
Based on 0 reviews
Be the first to review “V250110114-DAL-BLK AIRman Push-Pull 5-Port Solenoid”
