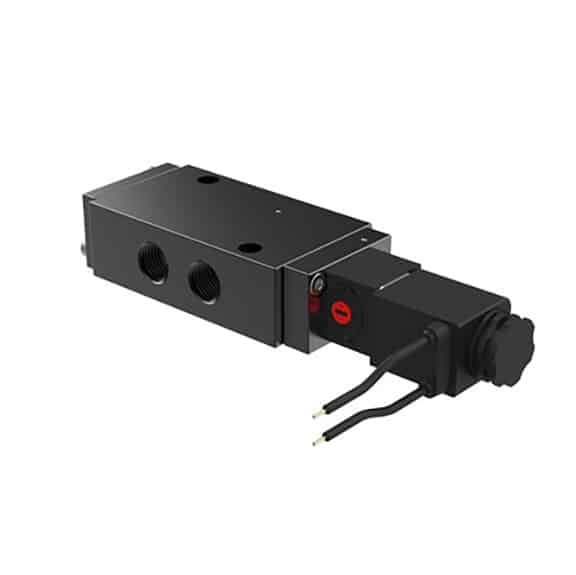

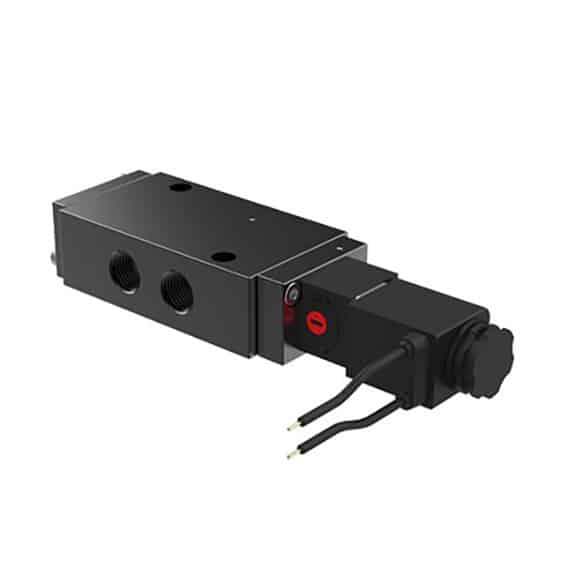

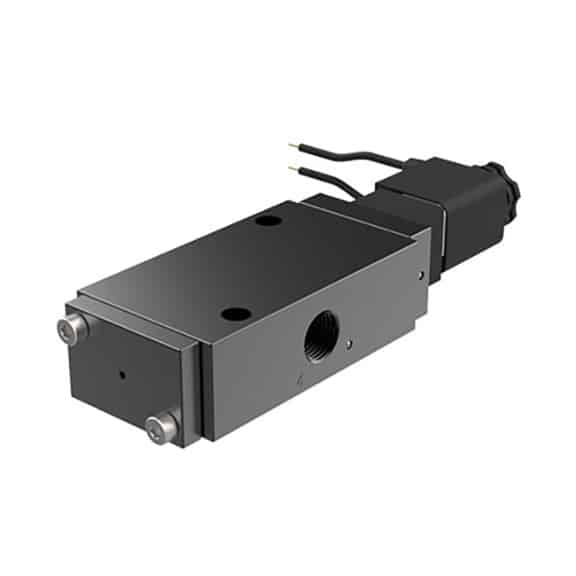

V2516N0523-DAL-BLK AIRman 3-Port Solenoid

V2516N0523-DAL-BLK AIRman

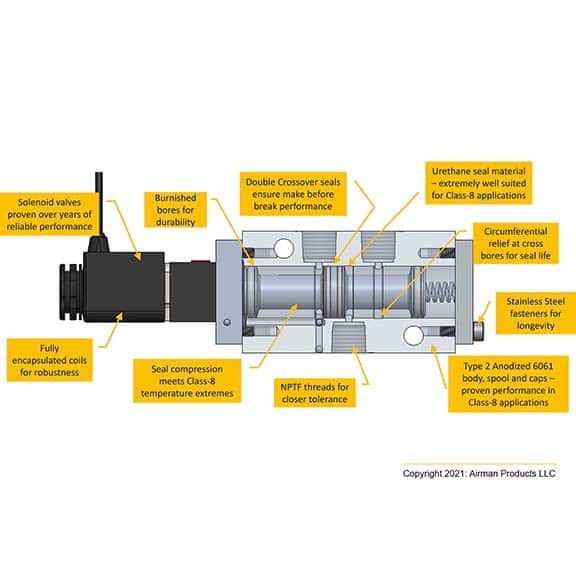

The V2516N0523-DAL-BLK AIRman 3-Port Solenoid is a heavy-duty, 3-port, 2-position (3/2) pneumatic solenoid valve engineered for commercial truck and trailer configurations. It operates on a 12V DC system and relies on a solenoid in-line actuation paired with a mechanical spring return.

• Commercial vehicle dump mechanisms (e.g., suspension dump lines)
• Pneumatic commercial truck tailgate latching structures
• Actuating and venting single-acting pneumatic cylinders

Specs:

• Solenoid – Spring Return
• 12v DC
• 18in Leads
• Ports: 1/4″ NPT
• Made in the USA!

Replaces:

• Hendrickson R-009790-1 (minus fittings)
• Apsco VE23W
• VE31
• Parker P2LBX392ESNDCG45
• P2LBX392ESNDCG47
• Automann 173.V33201
• Hitachi CG45

Drawing and Spec Sheet:

V2516N0523-DAL-CUSTOMER-PRINT-REV-B
