R-013282 Hendrickson Air Control Panel Filter
5 in stock (can be backordered)
While supplies last!
$76.02 Each
5 in stock (can be backordered)

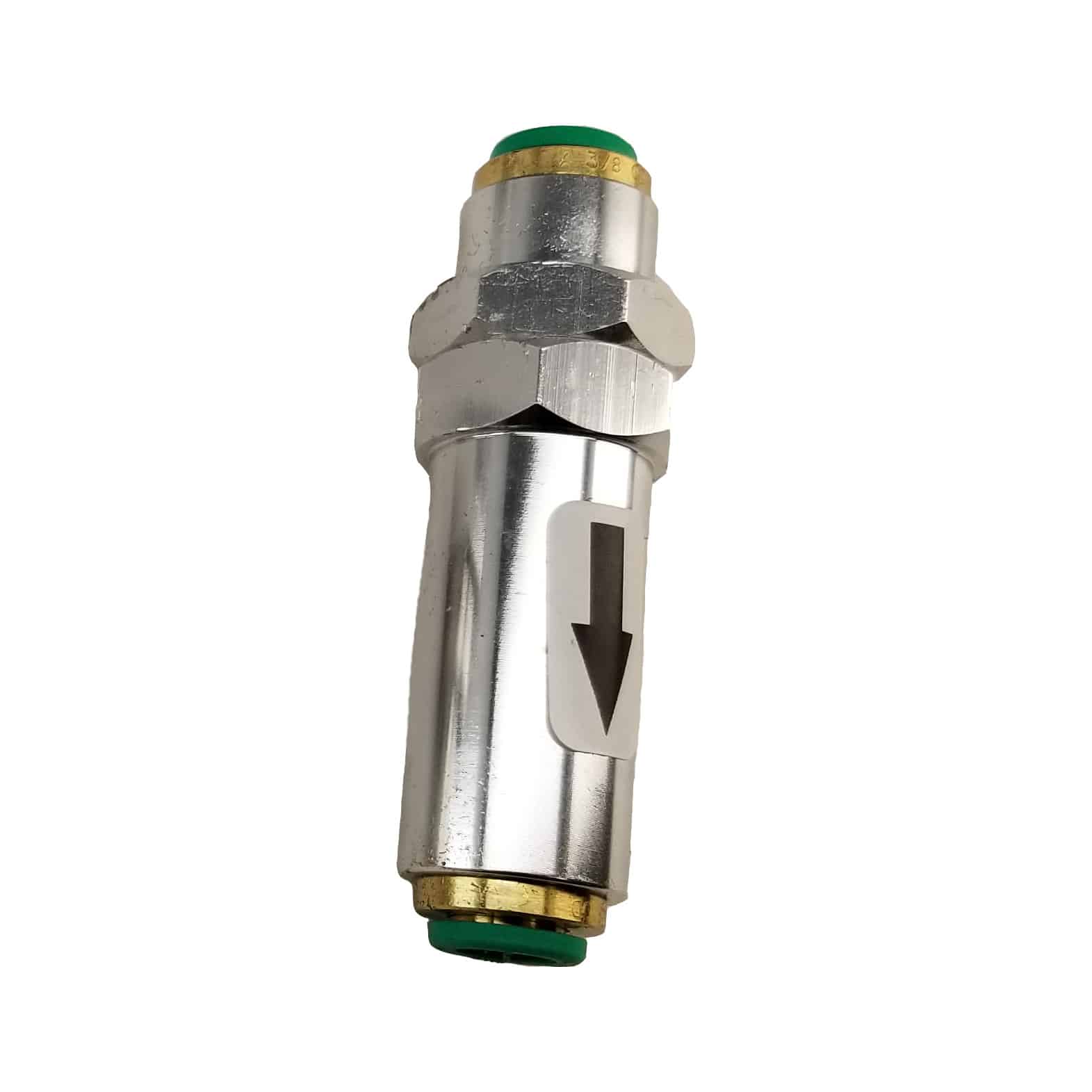

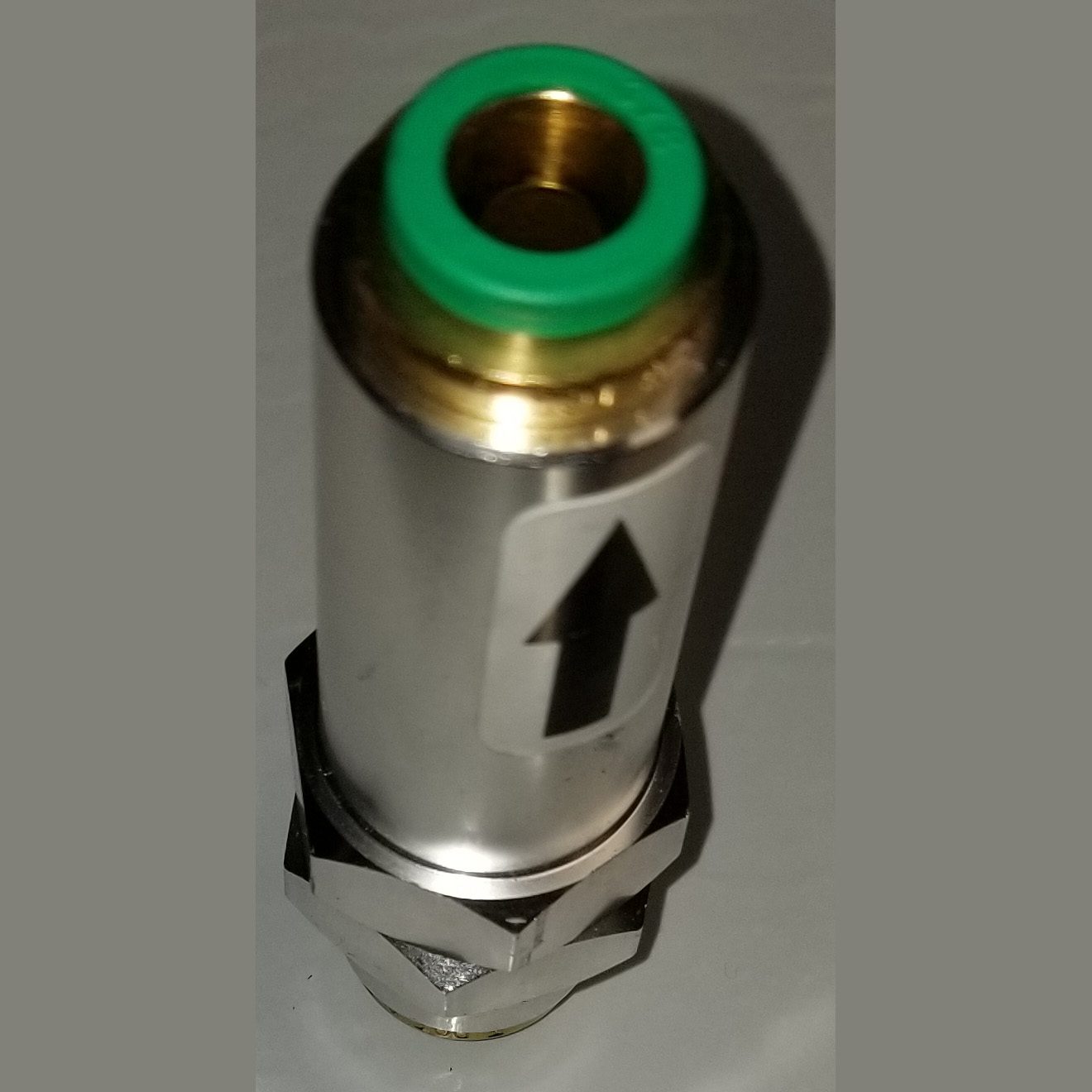

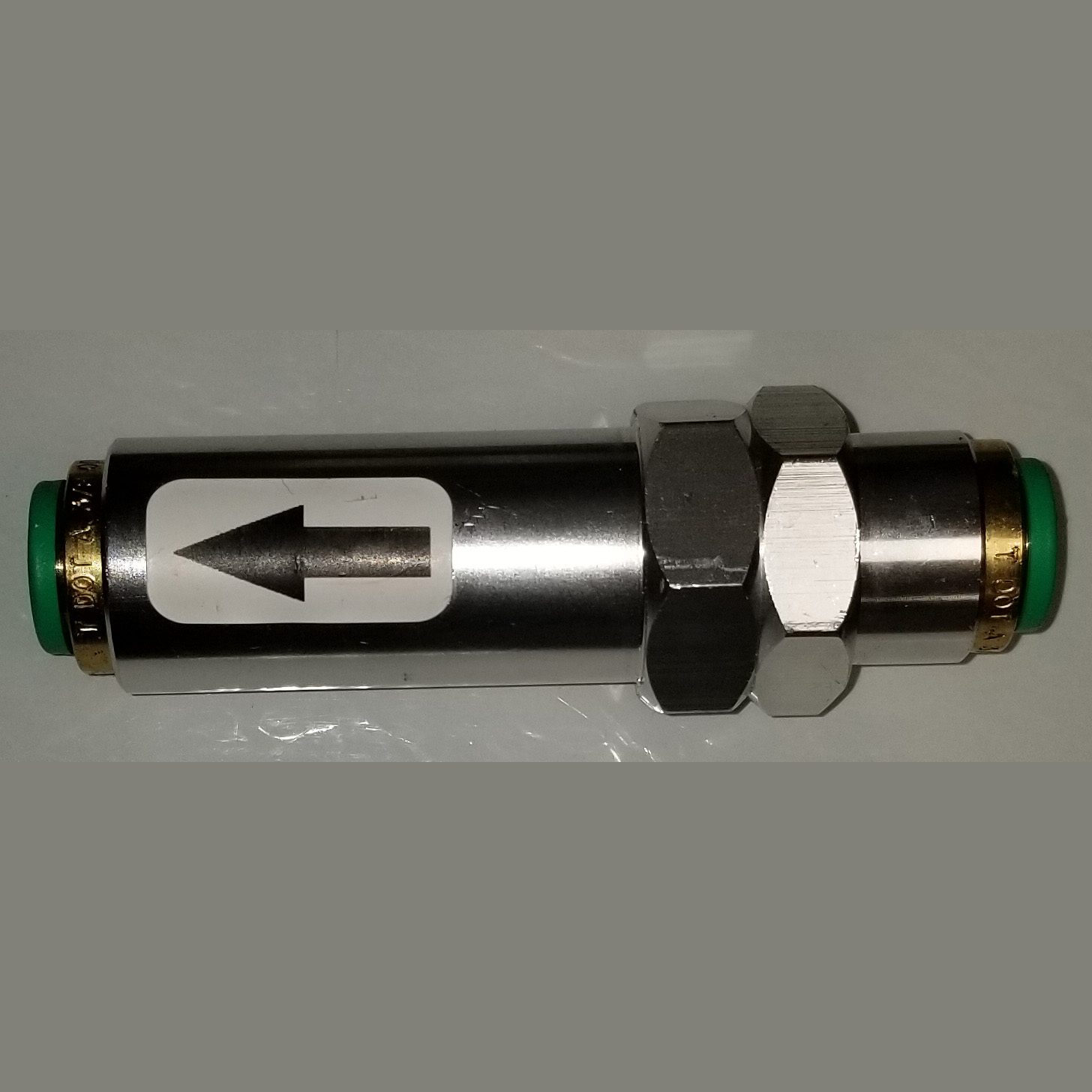

R-013282 Hendrickson Air Control Panel Filter
R-013282 Hendrickson Air Control Panel Filter
This filter is used in applications using the Hendickson HAC Series control panels since 2014 and protects the sensitive components inside the HAC-SSI and HAC-NSI from dirt and contamination. This item requires periodic maintenance to keep your valve operating at peak performance.
3/8 Push to connect fittings on each side for DOT nylon air hose.
NOTE: This item has been obsoleted by Hendrickson with no replacement available. When available stock is depleted, it cannot be ordered.
| Weight | 1 lbs |
|---|
3/8 Push to connect fittings on each side for DOT nylon air hose.
B600-203
Brand
Hendrickson
Based on 0 reviews
Be the first to review “R-013282 Hendrickson Air Control Panel Filter”
Related products
-
Air Controls, Heavy Truck, Lift Axle, Self Steering
B2400-B04 AIRman Air Control Kit for Steerable Lift Axle Applications (HAC-SSI)
On Sale!
*FREE UPS Ground
on orders of $99 or more!USA!
Air Controls, Heavy Truck, Lift Axle, Self SteeringB2400-B04 AIRman Air Control Kit for Steerable Lift Axle Applications (HAC-SSI)
Used in Steerable lift axle applications.
This air control kit is made by AIRman which directly replaces HAC-SSI formally from Hendrickson. The face of the panel does not bear the Hendrickson name but other than that, is identical to the original HAC-SSI. This panel also replaces flip switch model R-017513-00.
The Hendrickson version of the HAC-SSI is discontinued and is replaced by LC-SSI, which requires new plumbing and the panel size is different. We stock it also, and you can find it HERE.
- Note: A electrical relay may be required to connect to the reverse light circuit for the “lift in reverse” feature. Download the installation instructions below for more details.
- 12vdc applied to the lift solenoid raises the axle. This would be typically connected to the reverse light circuit.
- Note that some vehicles use a negative switched reverse light circuit and would require the use of a relay to operate properly (not included).
- 12vdc applied to the lift solenoid raises the axle. This would be typically connected to the reverse light circuit.
- This kit is for lifting/lowering the suspension only and does not control brakes.
Quantity discounts when ordering in bulk, mix-match with B2400-B03!
SKU: AP-B2400-B04 - Note: A electrical relay may be required to connect to the reverse light circuit for the “lift in reverse” feature. Download the installation instructions below for more details.
-
Air Controls, Heavy Truck, Lift Axle, Non Steering
B2400-B03 AIRman Air Control Kit for Non-Steerable Lift Axle Applications (HAC-NSI)
On Sale!
*FREE UPS Ground
on orders of $99 or more!USA!
Air Controls, Heavy Truck, Lift Axle, Non SteeringB2400-B03 AIRman Air Control Kit for Non-Steerable Lift Axle Applications (HAC-NSI)
Used in Non-Steerable lift axle applications.
This air control kit is made by AIRman which directly replaces HAC-NSI, formally from Hendrickson. The face of the panel does not bear the Hendrickson name but other than that, is identical to the original HAC-NSI. This panel also replaces flip switch model R-017512-00.
The Hendrickson version of the HAC-NSI is discontinued and is replaced by LC-NSI, which requires new plumbing and the panel size is different. Contact us for ordering the LC-NSI or use LC-SSI-2.
The B2400-B03 or HAC-NSI is the same as the B2400-B04 but does not have a solenoid for auto-lift feature, therefore no wires.
- This kit is for lifting/lowering the suspension only and does not control brakes.
Quantity discounts when ordering in bulk, mix-match with B2400-B04!
SKU: AP-B2400-B03
