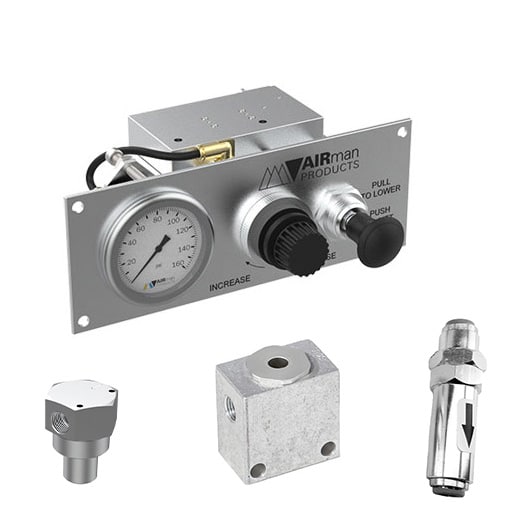

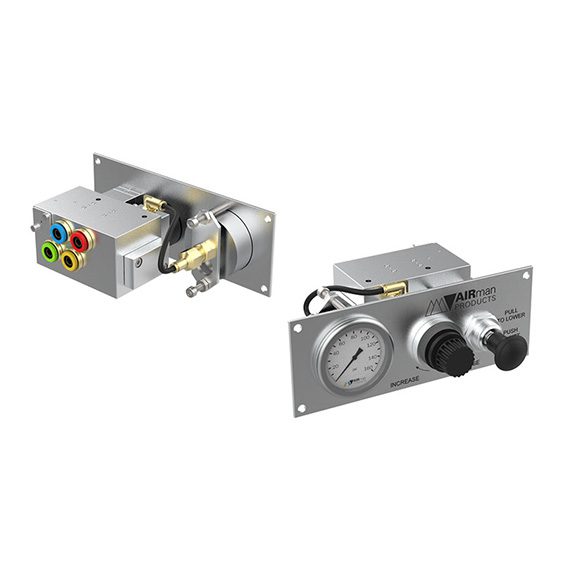

B2400-B03 AIRman Air Control Kit for Non-Steerable Lift Axle Applications

Same as Hendrickson HAC-NSI

B2400-B03 AIRman Air Control Kit fits all Non-Steerable Lift Axle Applications. All-in-one valve is easy to install and maintain. This valve replaces the HLK-NSI with the flip switch by use of a convenient push-pull switch.

Features;

• Made by AIRman Inc.
• Used in Non-Steerable lift axle applications.

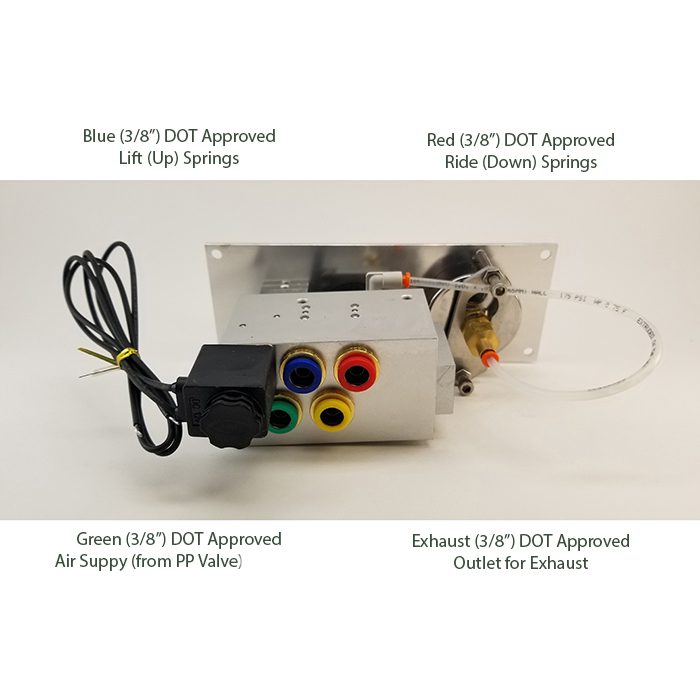

• Color coded push-to-connect fittings on valve.
  • Blue to lift springs,
  • Red to ride springs,
  • Green to supply air tank,
  • Yellow to exhaust.
• Instructions download below.
• Hoses/tubing not included. (Note: For reference, the small tube from gauge to valve is 5/32”)
• This kit is for lifting/lowering the suspension only and does not control brakes.

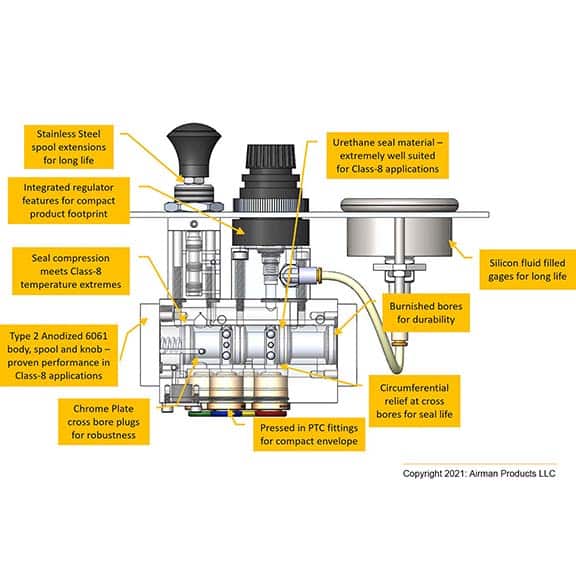

HAC-series air kit line has been designed to provide excellent reliability in your lift axle application. All air kits, however, are exposed to water and contaminant-filled air on a daily basis and do require preventative maintenance to ensure proper performance. Regular inspection, as a part of your preventative maintenance protocol, as well as daily operation checks should be performed.

Installation & Maintenance:

• Download HAC-SSx-Install-Instructions
• Download Maintenance Manual

Drawing and Spec Sheet:

• Download B2400-B03 CUSTOMER PRINT REV A1

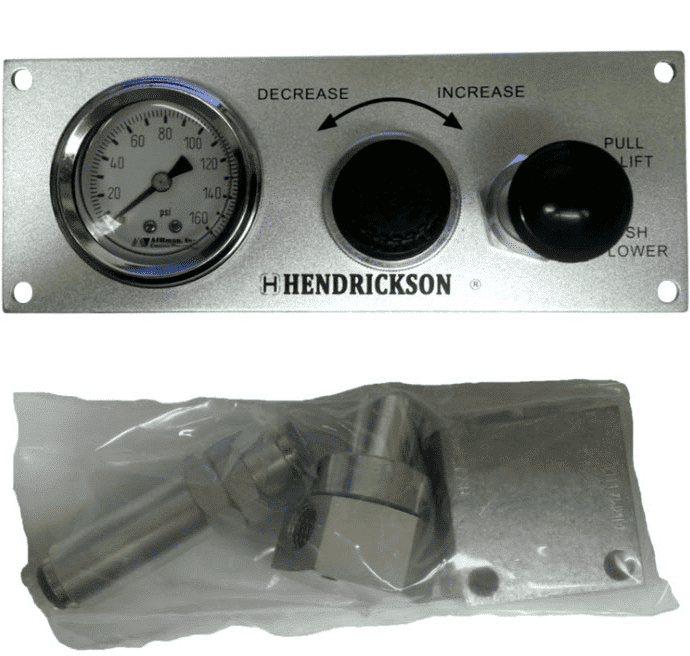

Same as HAC-NSI, R004319, 4319, HAC-NSI-01, 8446-HAVSSI, Dayton 334-1954, Dayton 3341954.

This panel also replaces flip switch model R-017512-00 (R01751200)
